Overview of Components

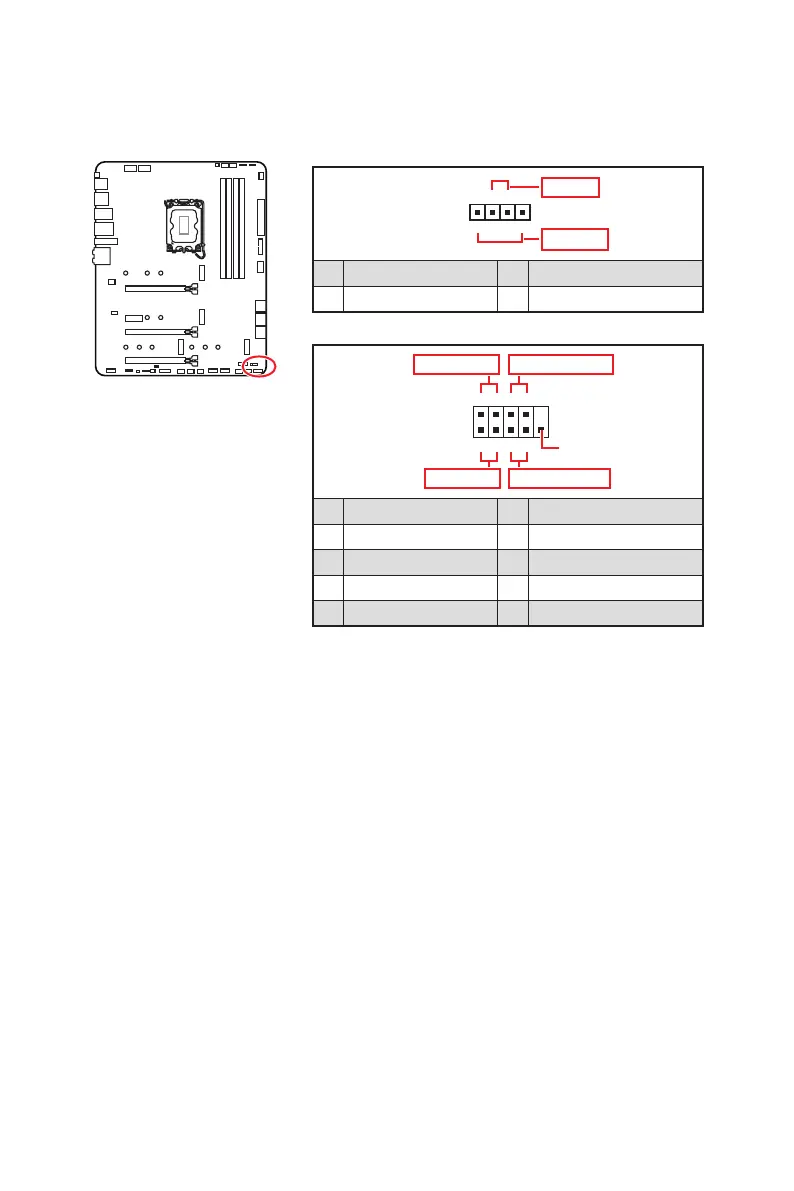

JFP1, JFP2: Front Panel Connectors
These connectors connect to the switches and LEDs on the front panel.
1
2 10
9
+
+
+- -- -
+
Power LED
HDD LED Reset Switch
Reserved
Power Switch
JFP1
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
1
JFP2
+
+
-
-
Speaker
Buzzer
1 Speaker - 2 Buzzer +
3 Buzzer - 4 Speaker +

MSI MPG Z690 EDGE WIFI Specifications

General

Chipset	Intel Z690
CPU Socket	LGA 1700
Memory Support	DDR5
Maximum Memory	128 GB
Form Factor	ATX
Wi-Fi	Wi-Fi 6E
Memory Slots	4
PCIe 5.0 x16 Slots	1
PCIe 4.0 x16 Slots	1
M.2 Slots	4
SATA Ports	6
Ethernet	2.5G LAN
Bluetooth	Bluetooth 5.2
Audio	Realtek ALC4080
Memory Speed	Up to 6666+ MHz (OC)
PCIe x16 Slots	3
PCIe x1 Slots	2
USB 3.2 Gen 1 Ports	4
USB 3.2 Gen 2 Ports	2
