CHAPTER 2 HARDWARE INSTALLATION
2-27

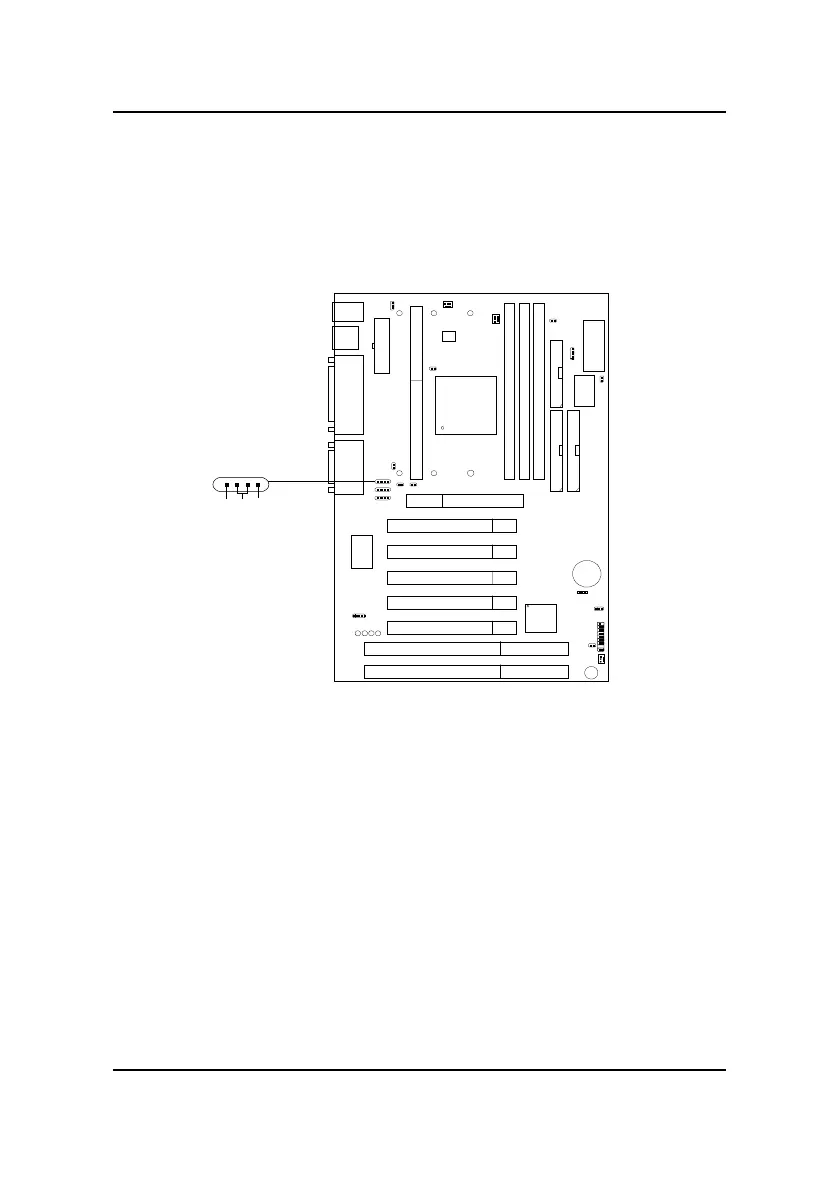

2.20 Modem-In: JPHONE (Optional)
The connector is for Modem with internal voice connector.
SPK_IN is connected to the Modem Speaker Out connector.
MIC_OUT is connected to the Modem Microphone In connector.
SPK IN
GND
MIC OUT
JPHONE
