Hardware Setup
MSI Reminds You...
Please do not fold the serial ATA cable in a 90-degree angle, for this
might cause the loss of data during the transmission.
PIN SIGNAL PIN SIGNAL
1 GND 2 TXP
3 TXN 4 GND
5 RXN 6 RXP
7 GND

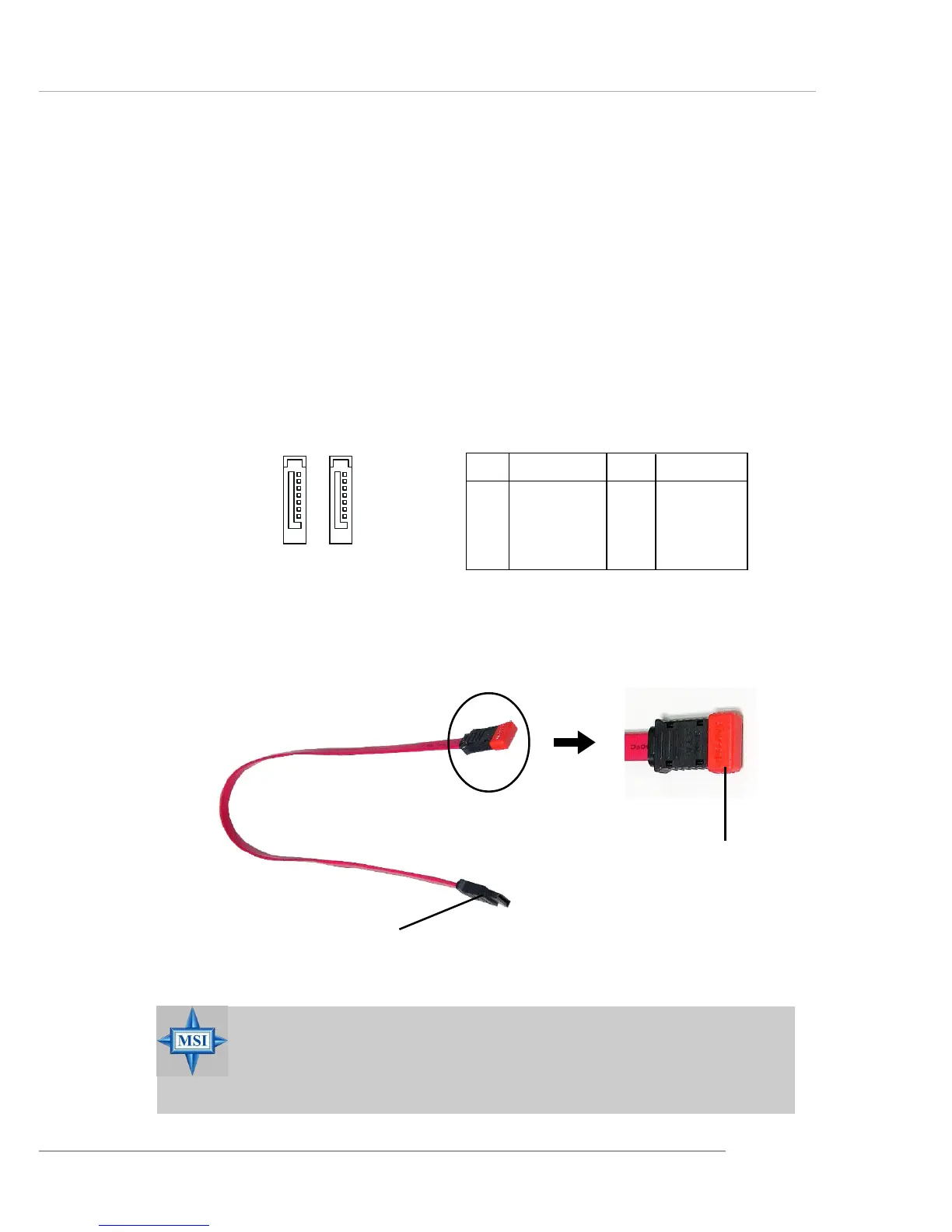

SATA1~ SATA2 Pin Definition
Serial ATA / Serial ATA RAID Connectors controlled by ICH5 / ICH5R:
SATA1, SATA2
The Southbridge of this mainboard is ICH5/ICH5R which supports two serial
connectors SATA1 & SATA2.
SATA1 & SATA2 are dual high-speed Serial ATA interface ports. Each sup-
ports 1
st
generation serial ATA data rates of 150 MB/s. Both connectors are fully
compliant with Serial ATA 1.0 specifications. Each Serial ATA connector can connect
to 1 hard disk device.
For the advanced functions of the Serial ATA RAID, please refer to Chapter
5: Introduction to Intel ICH5R Serial ATA RAID for details.
7
1
SATA2 SATA1
Connect to serial ATA ports
Take out the dust cover and
connect to the hard disk
devices
Optional Serial ATA cable
