MS-6747 M-ATX Mainboard
Fan Power Connectors: CFAN1
The CFAN1 (processor fan) supports system cooling fan with +12V. It
supports three-pin head connector. When connecting the wire to the connectors,
always take note that the red wire is the positive and should be connected to
the +12V, the black wire is Ground and should be connected to GND. If the
mainboard has a System Hardware Monitor chipset on-board, you must use a
specially designed fan with speed sensor to take advantage of the CPU fan
control.
MSI Reminds You...
Always consult the vendors for proper CPU cooling fan.

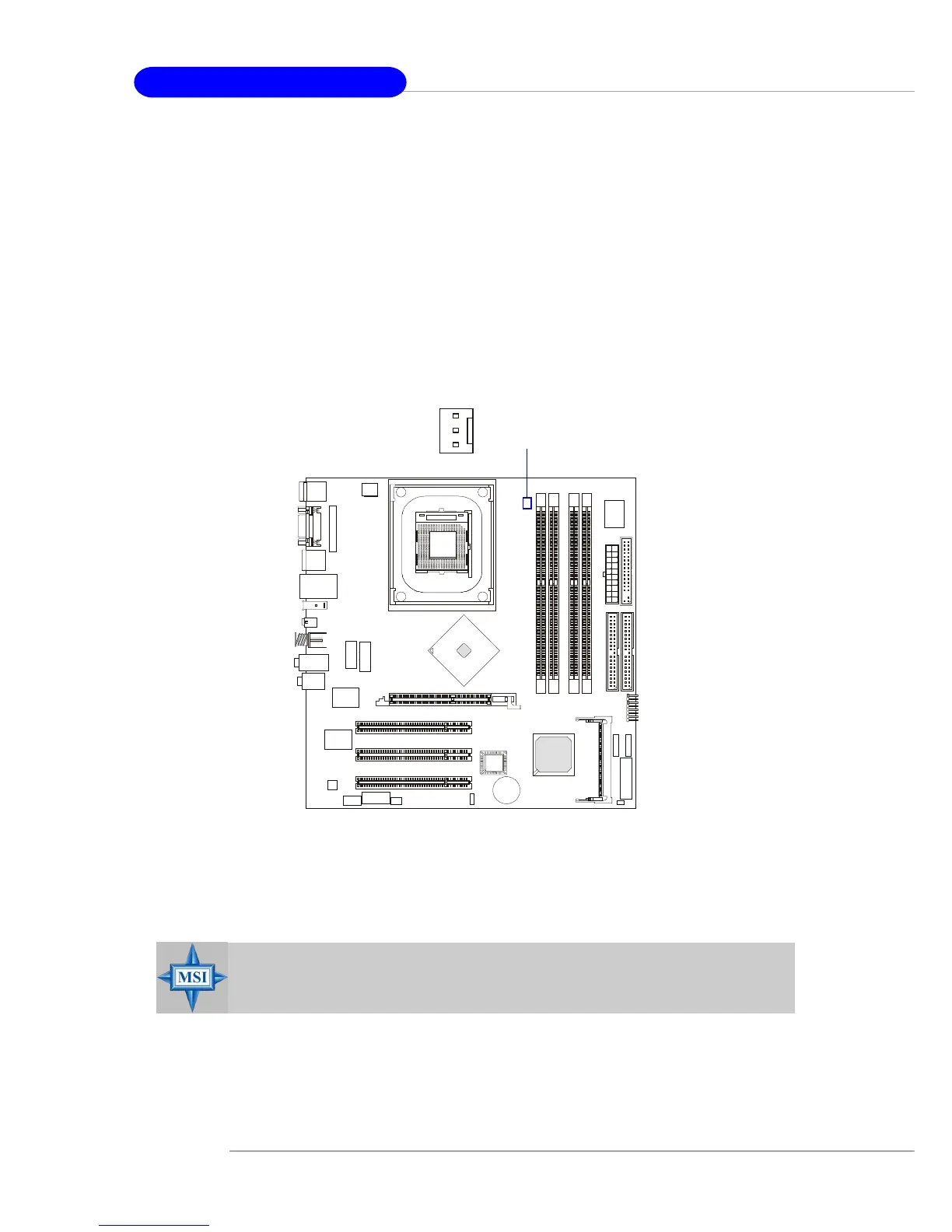

CFAN1
SENSOR
+12V
GND
