2-21
Hardware Setup

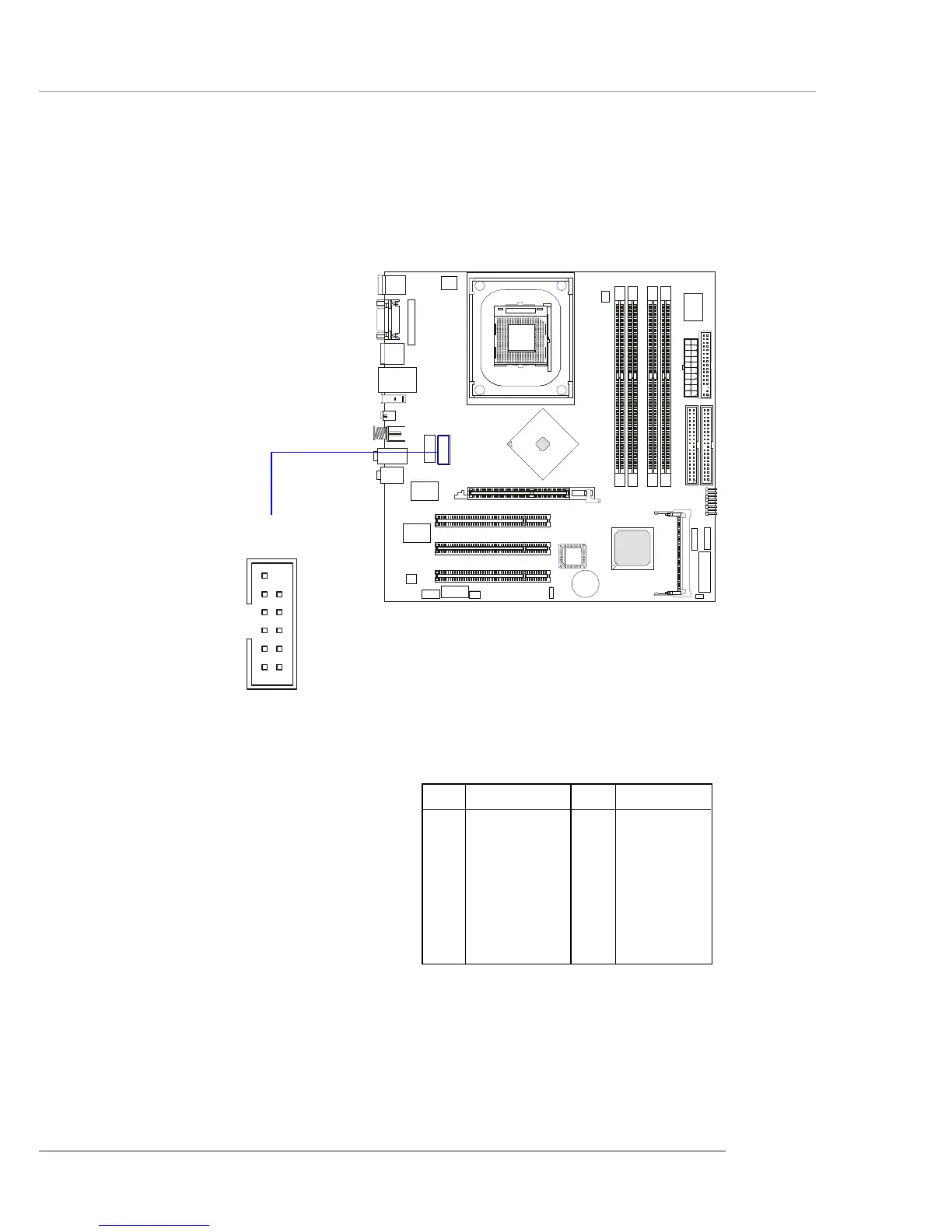

Joystick/Game Connector: J8
You can connect a joystick or game pad to this connector.
Pin Description Pin Description
1 FVCC5 (power) 2 Key pin
3 RXD 4 GP4
5 GP5 6 GP6
7 GP7 8 GP2
9 GP1 10 GP0
11 GP3 12 TXD
J9 Pin Definition
J8
1
11
2
12
