2-24
MS-6747 M-ATX Mainboard

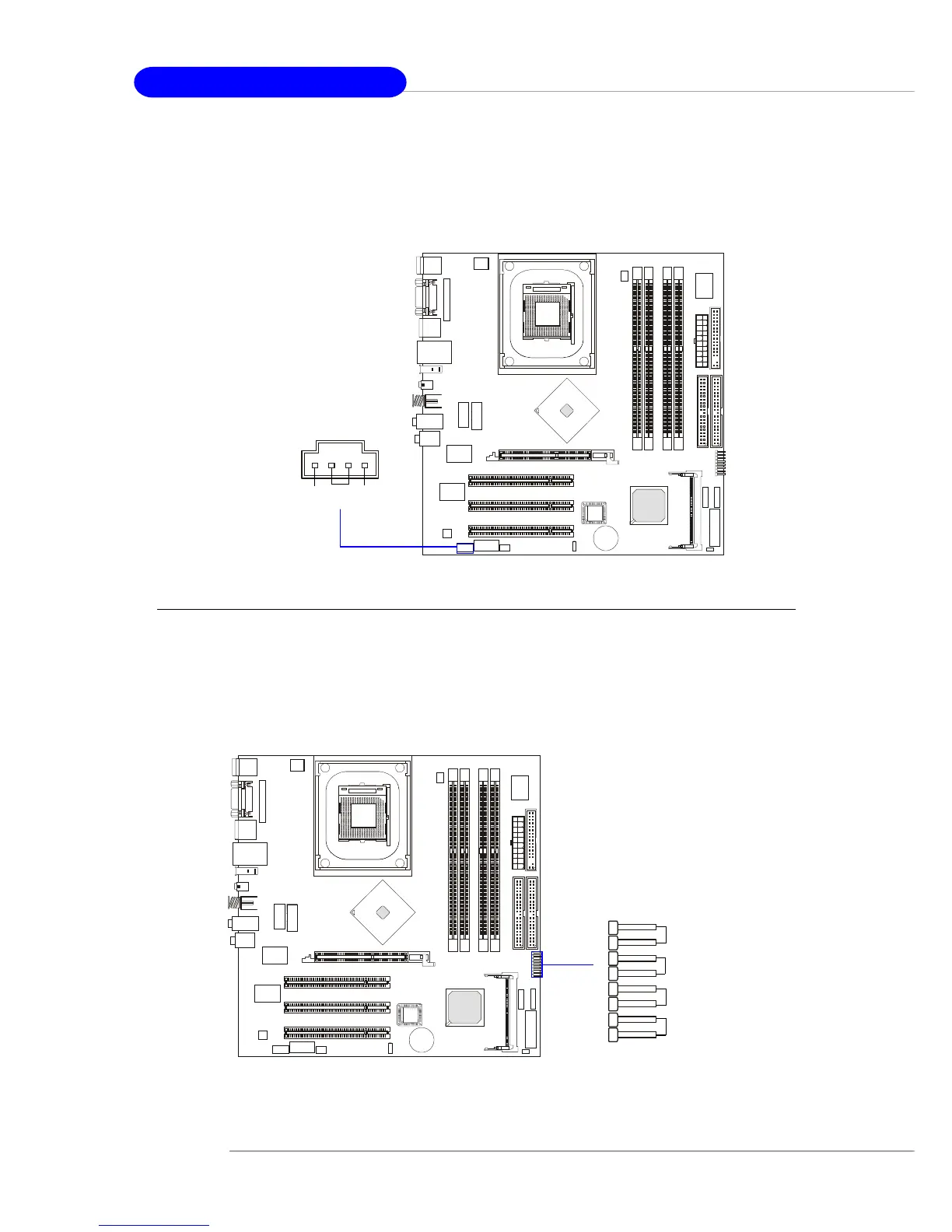

Front Panel Connector: F_P1
The mainboard provides one front panel connector for electrical con-
nection to the front panel switches and LEDs.
F_P1
1
8
Reset
HDD_LED
PWR_LED
PS-ON
Video-In Connector: JVIDEO1
The connector is for CD-ROM video connector.
JVIDEO1
GND
R
L
