2-27
Hardware Setup

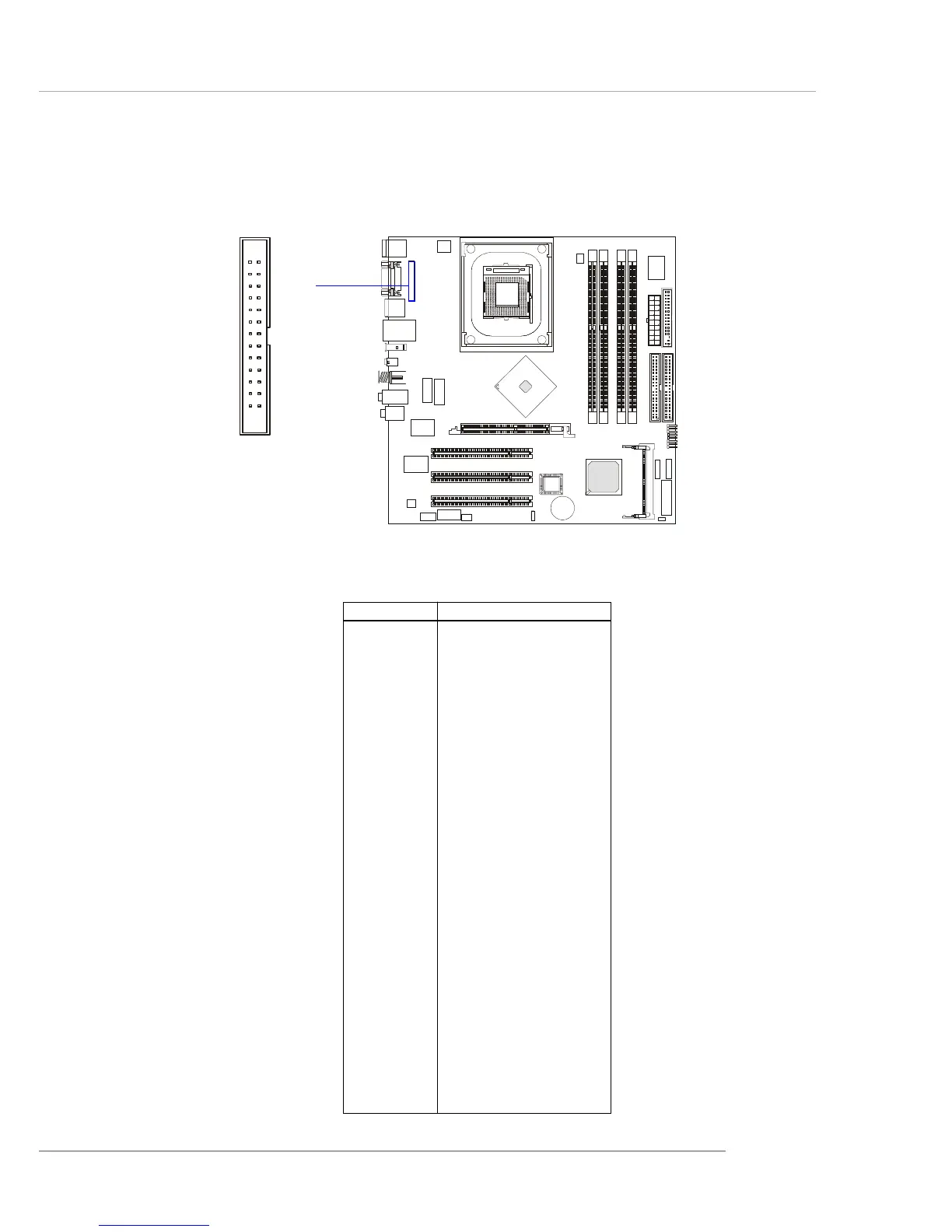

Print Port: JLPT
This mainboard provides a pin header, JLPT, for connecting a printer.
JLPT
12
26 25
PIN DESCRIPTION
1 STROBE
2 DATA0
3 DATA1
4 DATA2
5 DATA3
6 DATA4
7 DATA5
8 DATA6
9 DATA7
10 ACK#
11 BUSY
12 PE
13 SELECT
14 AUTO FEED#
15 ERR#
16 INIT#
17 SLIN#
18 GND
19 GND
20 GND
21 GND
22 GND
23 GND
24 GND
25 GND
26 NC
Pin Definition
