MS-7043 ATX Mainboard

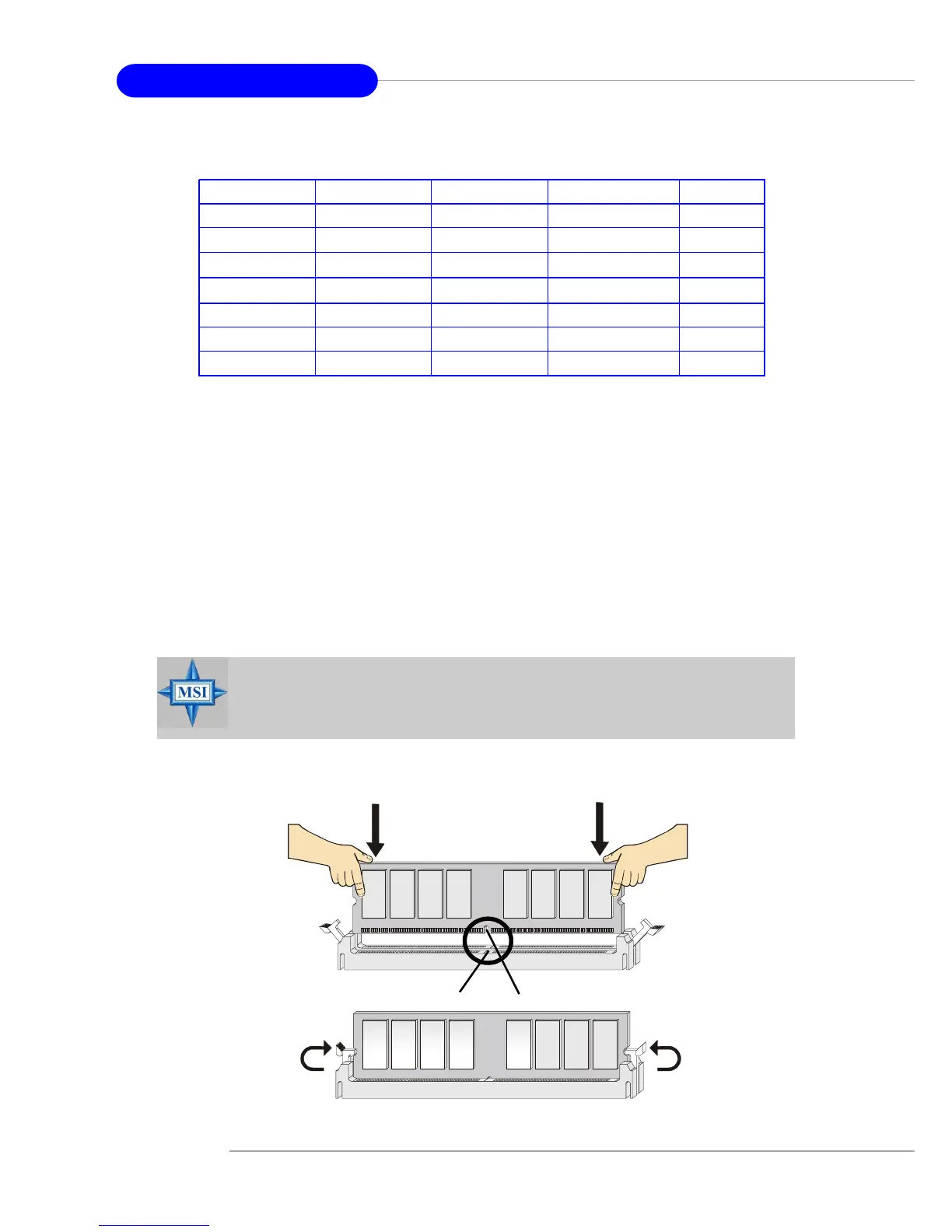

Installing DDR Modules
1. The DDR DIMM has only one notch on the center of module. The module will only fit
in the right orientation.
2. Insert the DIMM memory module vertically into the DIMM slot. Then push it in until the
golden finger on the memory module is deeply inserted in the socket.
3. The plastic clip at each side of the DIMM slot will automatically close.
Memory modules can be installed in any combination as follows:
Please refer to http://www.msi.com.tw/program/products/mainboard/
mbd/pro_mbd_trp_list.php for compatible DDR modules.
MSI Reminds You...
You can barely see the golden finger if the module is properly inserted
in the socket.
Volt
Notch
S: Single-Channel Mode D: Dual-Channel Mode
DIMM1 DIMM2 DIMM3 System Density Mode
128MB~1GB 128MB~1GB S
128MB~1GB 128MB~1GB S
128MB~1GB 128MB~1GB S
128MB~1GB 128MB~1GB 256MB~2GB S
128MB~1GB 128MB~1GB 256MB~2GB D
128MB~1GB 128MB~1GB 256MB~2GB D
128MB~1GB 128MB~1GB 128MB~1GB 384MB~3GB S
