n 4-Channel Mode for 4-Speaker Output

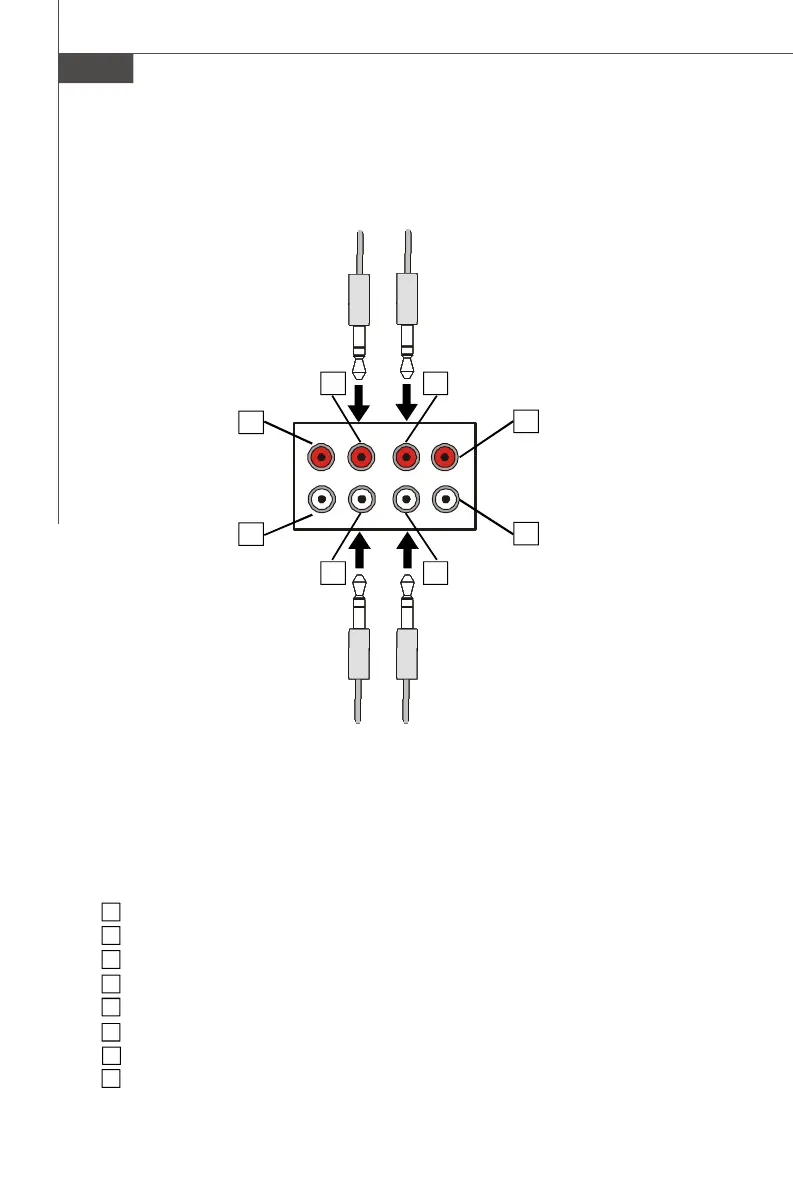

Description:
Connect two speakers to back
panel’s Front-channel Line Out con-
nector and two speakers to the Rear-
channel Line Out connector.
4-Channel Analog Audio Output
1 Line Out (Side surround channels) Right.
2 Line Out (Side surround channels) Left.
3 Line Out (Front channels) Right.
4 Line Out (Front channels) Left.
5 Line Out (Rear surround channels) Right.
6 Line Out (Rear surround channels) Left.
7 Line Out (Center channel)
8 Line Out (Subwoofer channel)
3
4
5
6
7
8
1
2
