MSI MS-7329 - Page 75

Realtek ALC883 Audio
A-21
n 6-Channel Mode for 6-Speaker Output
Description:
Connect two speakers to back
panel’s Front-channel Line Out
connector, two speakers to the
Rear-channel Line out connector
and two speakers to the Center/
Subwoofer-channel Line Out
connector.

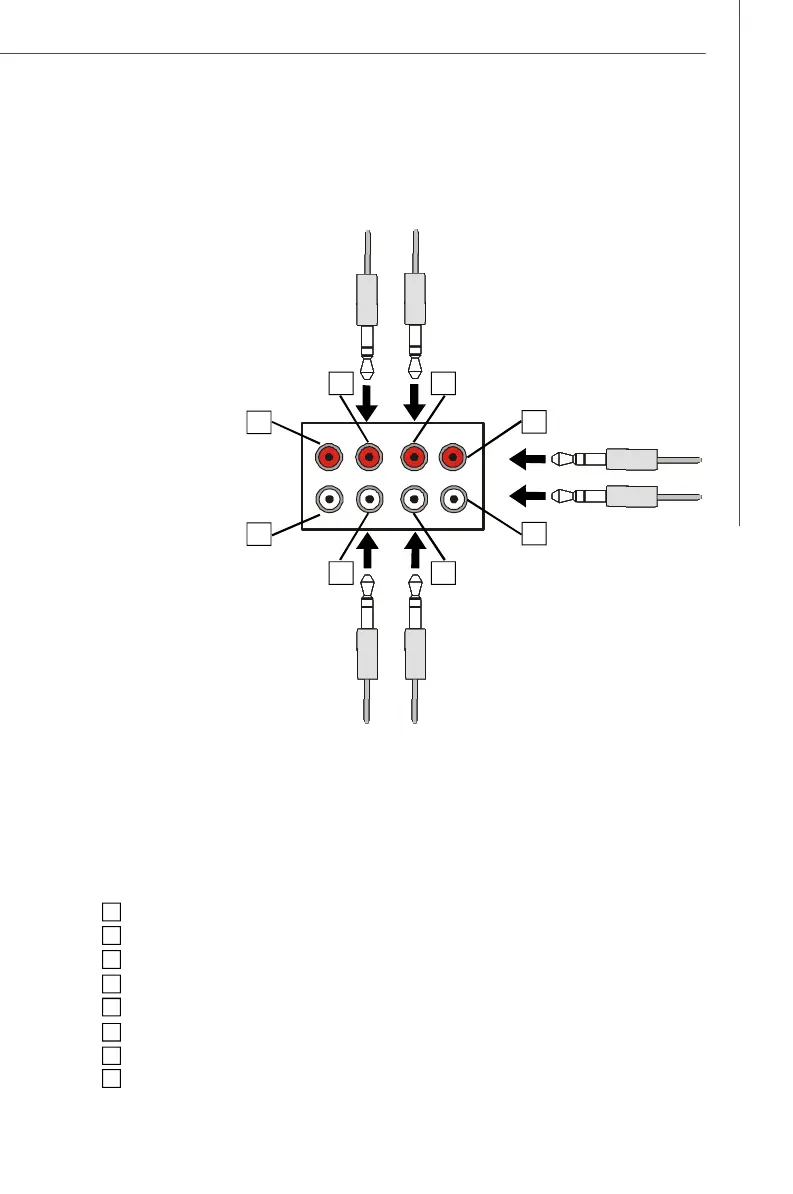

6-Channel Analog Audio Output
1 Line Out (Side surround channels) Right.
2 Line Out (Side surround channels) Left.
3 Line Out (Front channels) Right.
4 Line Out (Front channels) Left.
5 Line Out (Rear surround channels) Right.
6 Line Out (Rear surround channels) Left.
7 Line Out (Center channel)
8 Line Out (Subwoofer channel)
