B-23
nVidia RAID

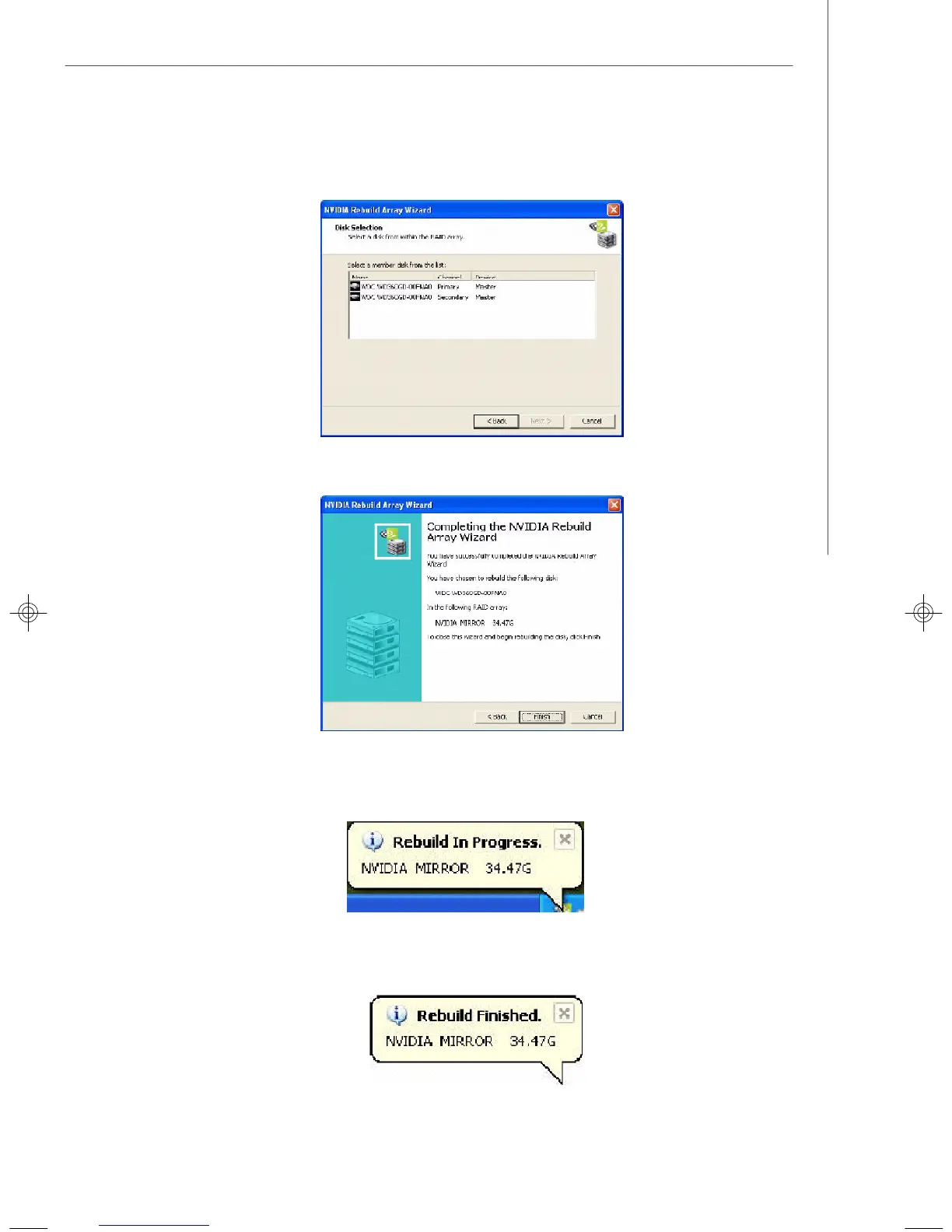

4. Click Next. The Disk Selection page appears.
5. Select the drive that you want to rebuild by clicking it from the list, then click Next.
The Completing the NVIDIA Rebuild Array page appears.
6. Click Finish. The array rebuilding starts after a few seconds, and a small pop-up
message appears towards the bottom right corner of the screen as shown in the
figure below.
When the rebuilding process is finished you will see the pop up box shown in Figure
below.
7346v1.0-B_NVRAID.p65 2007/3/6, 上午 11:5823
