2-7
Hardware Setup
Memory

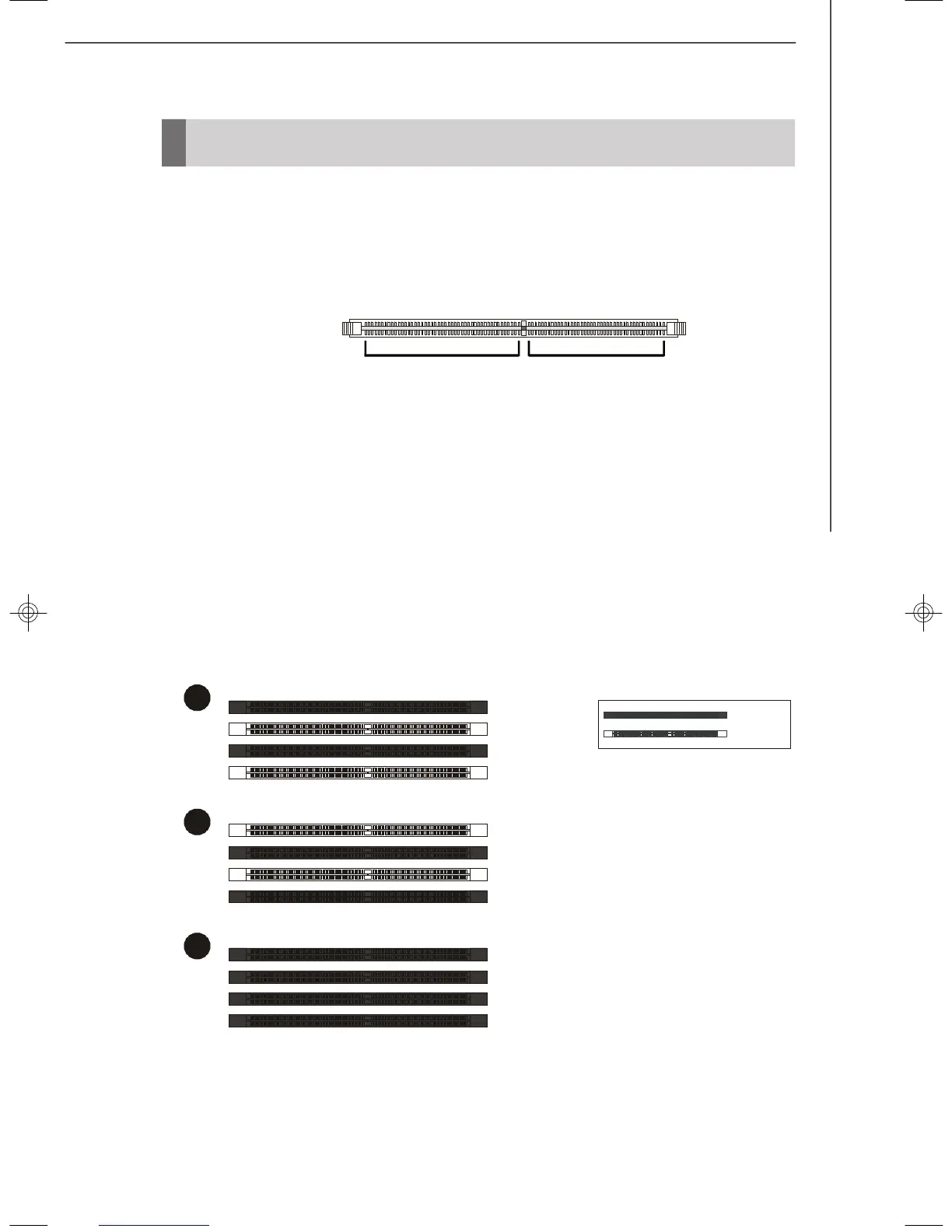

Dual-Channel mode Population Rule
In Dual-Channel mode, the memory modules can transmit and receive data with two
data bus lines simultaneously. Enabling Dual-Channel mode can enhance the system
performance. Please refer to the following illustrations for population rules under
Dual-Channel mode.
64x2=128 pin 56x2=112 pin
DDR2
240-pin, 1.8V
Single-Channel: All DIMMs in GREEN
Dual-Channel: Channel A in GREEN; Channel B in ORANGE
DIMM1
DIMM3
DIMM2
DIMM4
DIMM1
DIMM3
DIMM2
DIMM4
DIMM1
DIMM3
DIMM2
DIMM4
These DIMM slots are used for installing memory modules.
For more information on compatible components, please visit http://www.msi.com.
tw/testreport.htm
