MSI MS-7353 User Guide

En-16
MS-7353 Mainboard

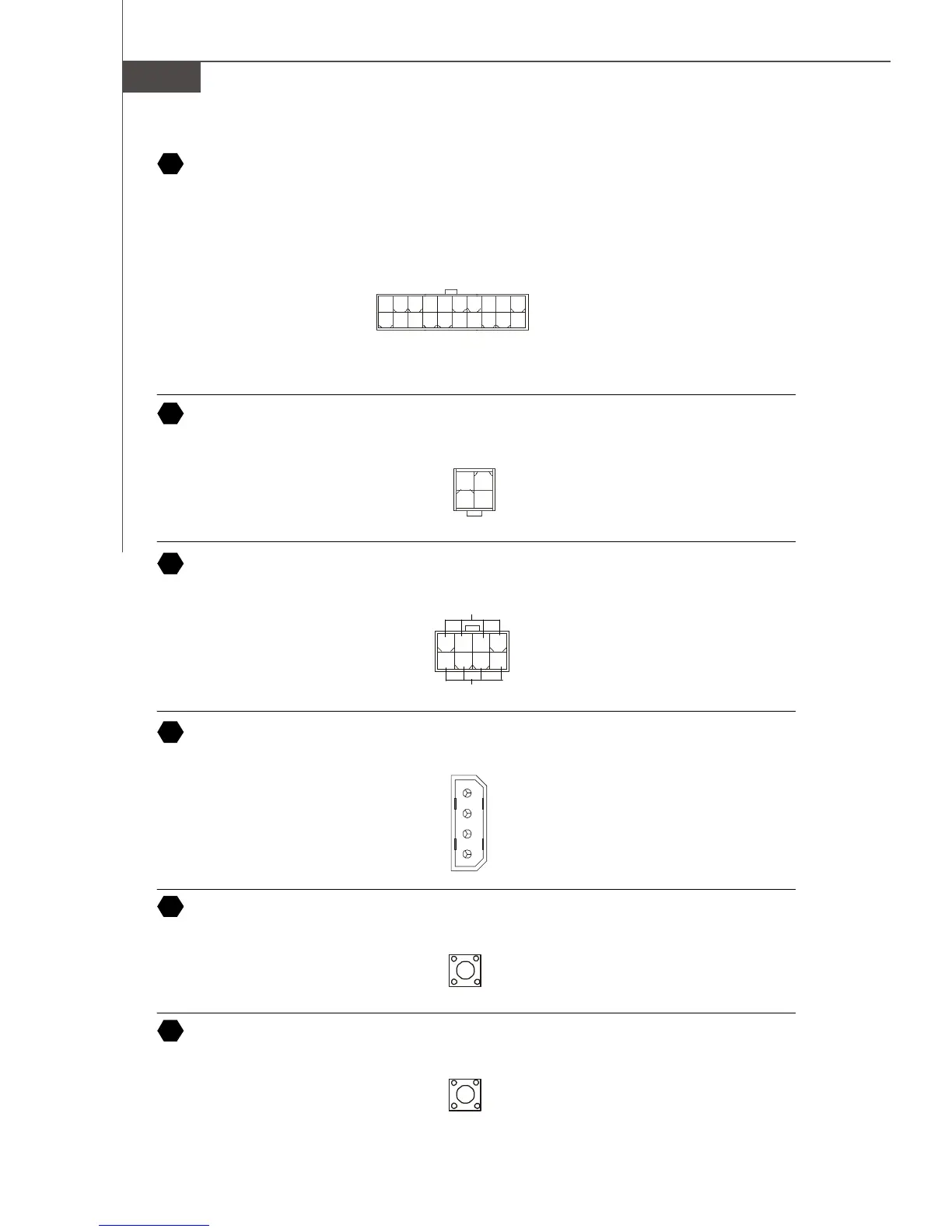

ATX 12V Power Connector (2x2-Pin)
This 12V power connector is used to provide power to the CPU.
ATX 12V Power Connector (2x4-Pin)
This 12V power connector is used to provide power to the CPU.
ATX 12V Power Connector (1x4-Pin)
This 12V power connector is used to provide power to the graphics card.
1
34
2
GND
12V
GND
12V
4
2
1
3
5V
GND
GND
12V
ATX 20-Pin Power Connector
This connector allows you to connect an ATX 20-pin power supply. To connect the ATX
20-pin power supply, make sure the plug of the power supply is inserted in the proper
orientation and the pins are aligned. Then push down the power supply firmly into the
connector.
1
10 20
11
3.3V
3.3V
GND
5V
GND
5V
GND
PWR OK
5VSB
12V 5V
5V
-5V GND
GND GND PS-ON GND -12V 3.3V
23
24
25
26
8
4
1
5
GND
+12V
Power Button
This power button is used to turn-on or turn-off the system. Press the button to turn-on or
turn-off the system.
27
Reset Button
This reset button is used to reset the system. Press the button to reset the system.
28
