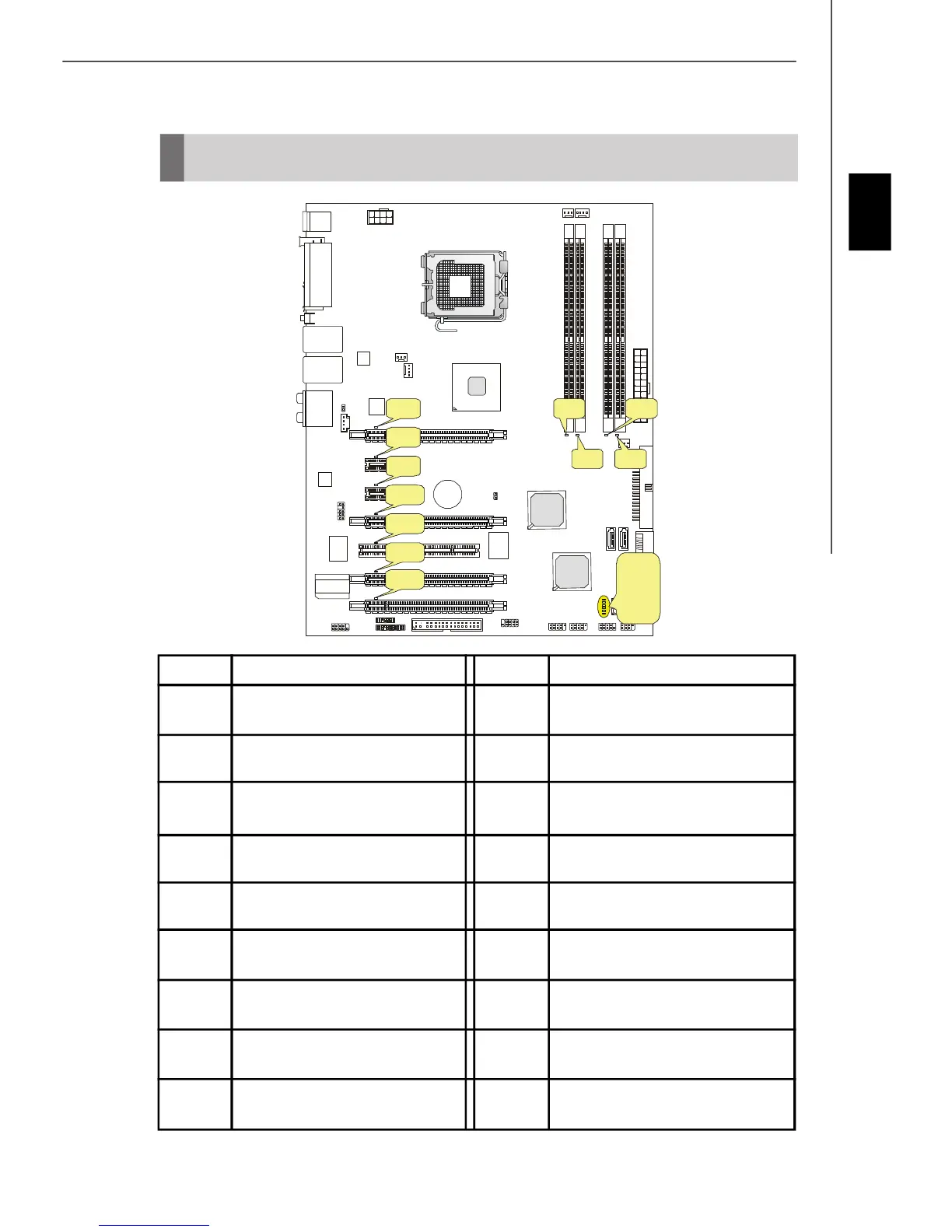

LED Status Indicators
Name Status
LED1 Lights when DIMM1 slot is
functional.
LED2 Lights when DIMM2 slot is
functional.
LED3 Lights when DIMM3 slot is
functional.
LED4 Lights when DIMM4 slot is
functional.
LED5 Lights when PCI_E1 slot is
functional.
LED6 Lights when PCI_E2 slot is
functional.
LED7 Lights when PCI_E3 slot is
functional.
LED8 Lights when PCI_E4 slot is
functional.
LED9 Lights when PCI1 slot is
functional.
Name Status
LED10 Lights when PCI_E5 slot is
functional.
LED11 Lights when PCI_E6 slot is
functional.
LED12 Lights when system is
power-on. (optional)
LED13 Lights when system is in
standby mode. (optional)
LED14 Lights when system is
power-on.
LED15 Lights when system is in
standby mode.
LED16 Lights when HDD is
functional.
LED17 Lights when RAID function is
working.
LED4
LED2
LED1
LED5
LED6
LED7
LED8
LED9
LED10
LED11
LED3
LED12
LED13
LED14
LED15
LED16
LED17
