MSI MS-7392 - CPU & Cooler Installation (continued); CPU Seating and Load Plate Securing

2-5
Hardware Setup

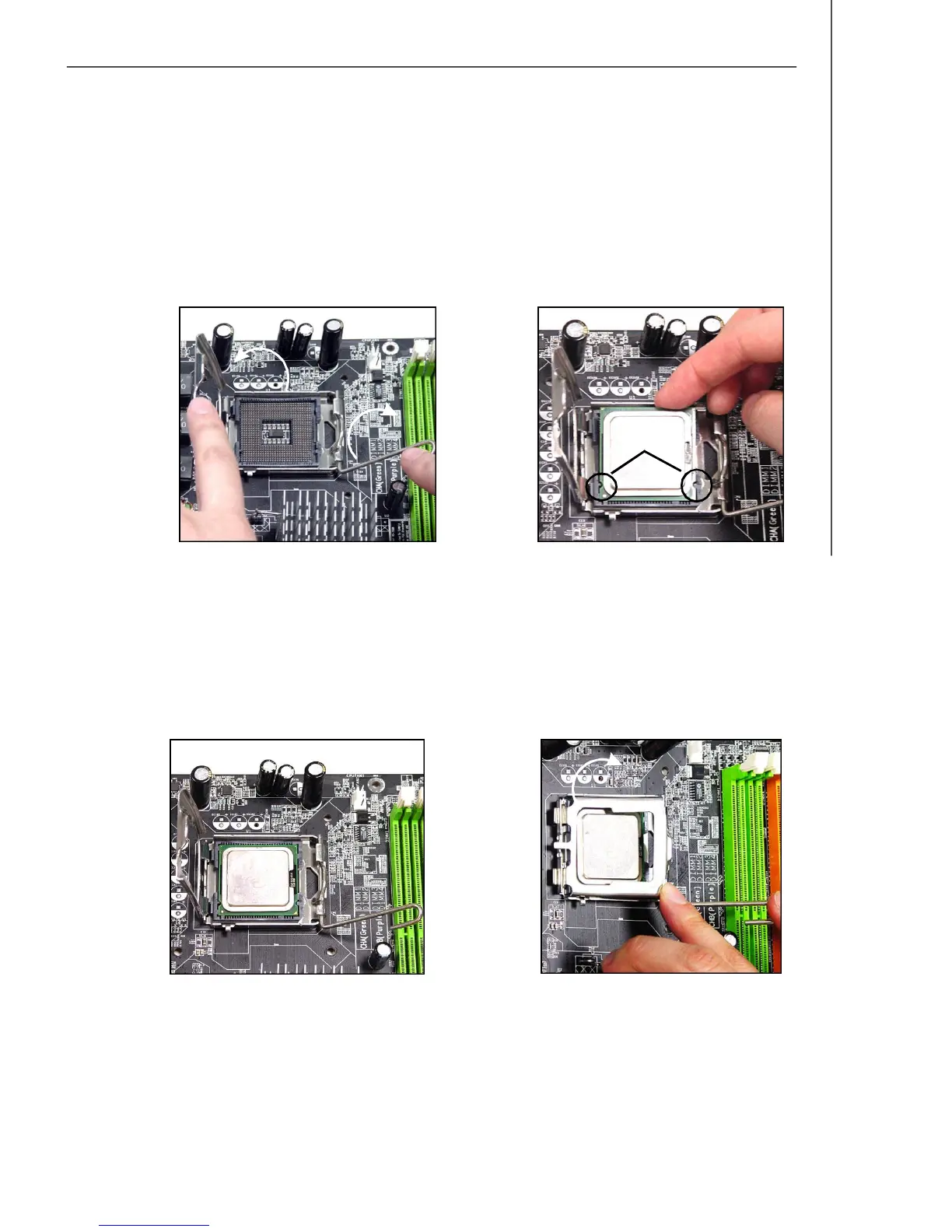

6.After confirming the CPU direction
for correct mating, put down the
CPU in the socket housing frame.
Be sure to grasp on the edge of
the CPU base. Note that the align-
ment keys are matched.
8.Cover the load plate onto the
package.
7.Visually inspect if the CPU is
seated well into the socket. If not,
take out the CPU with pure vertical
motion and reinstall.
alignment
key
5.Lift the load lever up and open the
load plate.
