MSI MS-7392 - Hardware Setup: Speaker Connections; 2-Channel Stereo Speaker Output

B-19
Realtek ALC888 Audio
Hardware Setup
Connecting the Speakers
When you have set the Multi-Channel Audio Function mode properly in the software
utility, connect your speakers to the correct phone jacks in accordance with the
setting in software utility.

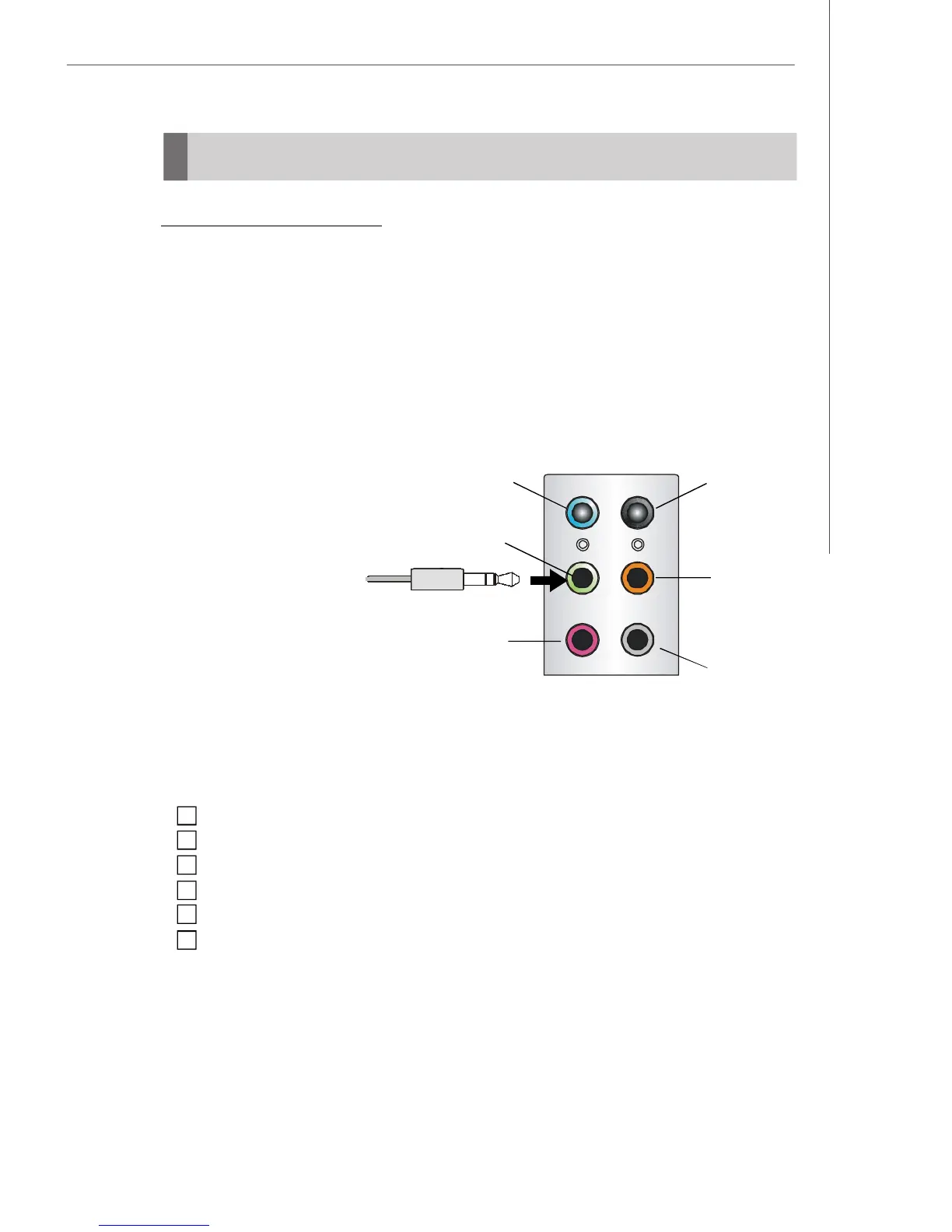

n 2-Channel Mode for Stereo-Speaker Output
1 Line In
2 Line Out (Front channels)
3 MIC
4 No function
5 No function
6 No function
3
1
2
6
4
5
4-Channel Analog Audio Output
