2-10
MS-7392 Mainboard

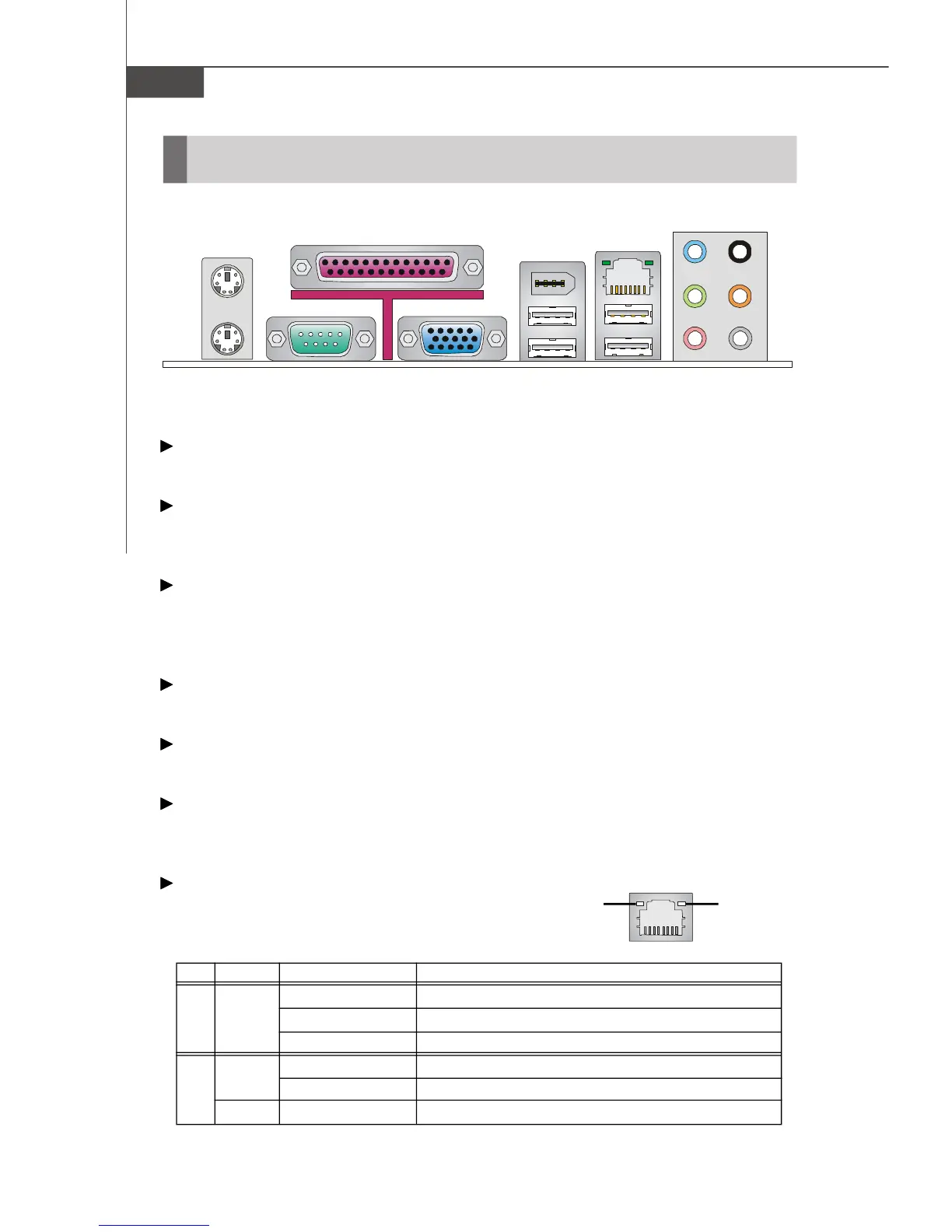

Back Panel
Mouse/Keyboard
The standard PS/2
®
mouse/keyboard DIN connector is for a PS/2
®
mouse/keyboard.
Parallel Port
A parallel port is a standard printer port that supports Enhanced Parallel Port (EPP)
and Extended Capabilities Parallel Port (ECP) mode.
Serial Port
The serial port is a 16550A high speed communications port that sends/ receives 16
bytes FIFOs. You can attach a serial mouse or other serial devices directly to the
connector.
VGA Port (Optional)
The DB15-pin female connector is provided for monitor.
1394 Port (Optional)
The IEEE1394 port on the back panel provides connection to IEEE1394 devices.
USB Port
The USB (Universal Serial Bus) port is for attaching USB devices such as keyboard,
mouse, or other USB-compatible devices.
LAN Jack
The standard RJ-45 LAN jack is for connec-
tion to the Local Area Network (LAN). You
can connect a network cable to it.
LED Color LED State condition
Off LAN link is not established.
Left Orange On (steady state) LAN link is established.
On (brighter & pulsing)The computer is communicating with another computer on the LAN.
Green Off 10 Mbit/sec data rate is selected.
Right On 100 Mbit/sec data rate is selected.
Orange On 1000 Mbit/sec data rate is selected.
Link IndicatorActivity Indicator
RS-Out
CS-Out
SS-Out
Mouse
Keyboard
Parallel Port
Serial Port VGA Port
(Optional)
1394 Port
(Optional)
USB Port
LAN Jack
Line-In
Line-Out
Mic
