MSI MS-7392 - Integrated Peripherals Menu (continued); IDE, SATA, and RAID Controller Settings; I;O Device Configuration (Serial;Parallel Ports)

3-13
BIOS Setup
On-Chip IDE Controller
These items allow users to enable or disable the IDE controller.
PCI IDE BusMaster
This item allows you to enable/ disable BIOS to used PCI busmastering for
reading/ writing to IDE drives.
On-Chip SATA Controller
These items allow users to enable or disable the SATA controller.
RAID mode
This item is used to enable/disable the RAID function for SATA devices.
I/O Device

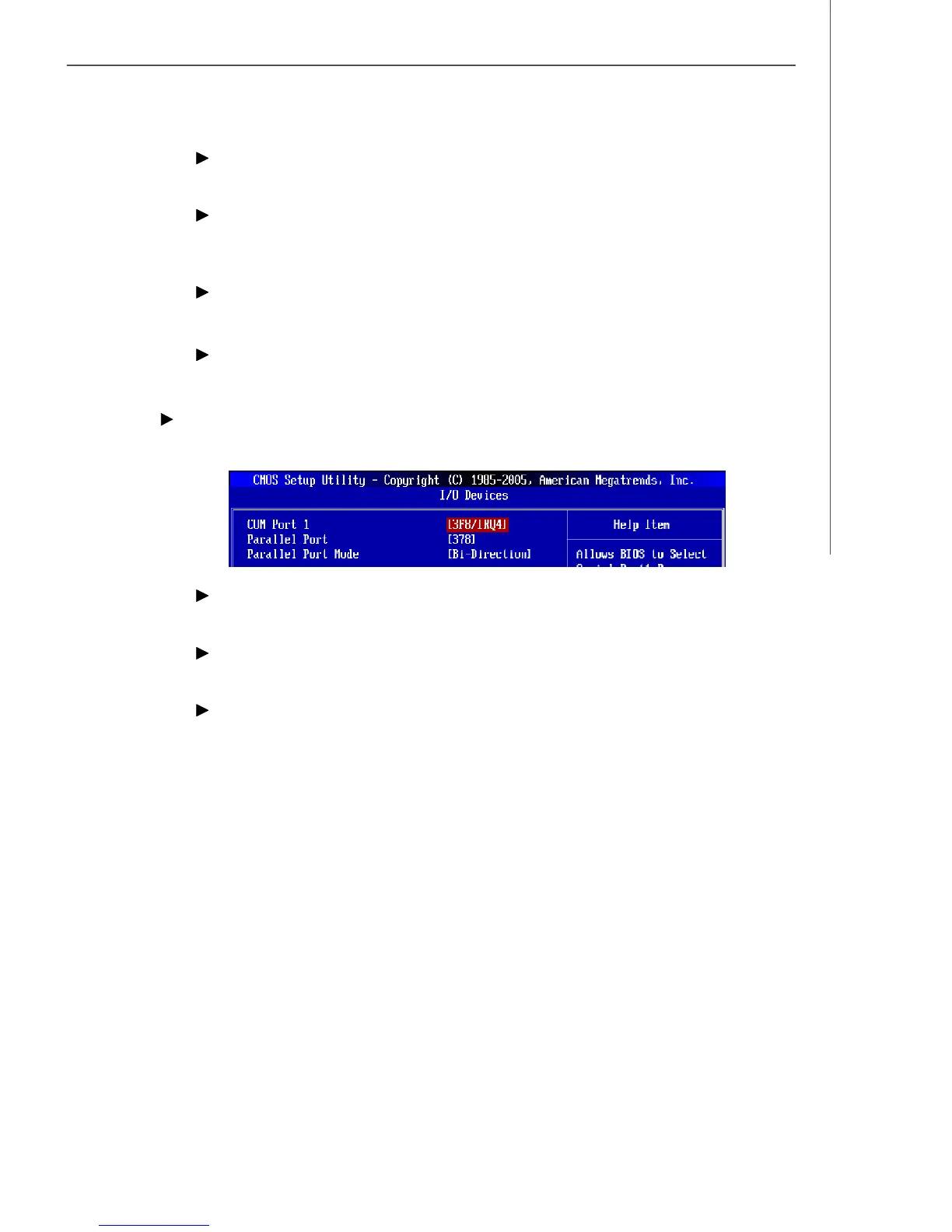

Press <Enter> to enter the sub-menu and the following screen appears:
COM Port 1
Select an address and corresponding interrupt for the first serial port.
Parallel Port
This item allows you to set parallel port.
Parallel Port Mode
This item allows you to select the parallel port mode.
