MS-7514 Mainboard
2-22

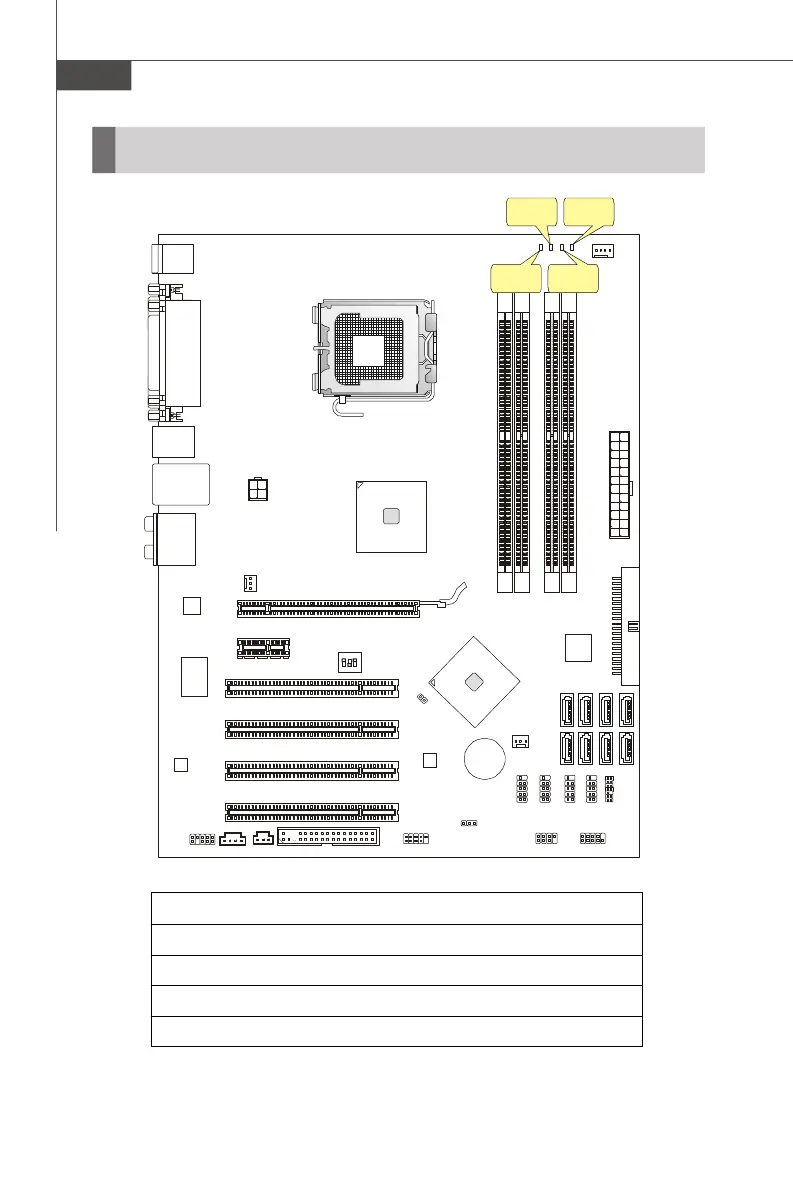

LED Status Indicators
Name Status
LED1 Lights blue when CPU is in 1 phase power mode.
LED2 Lights blue when CPU is in 2 phase power mode.
LED3 Lights blue when CPU is in 3 phase power mode.
LED4 Lights blue when CPU is in 4 phase power mode.
LED4
LED2
LED3 LED1
