3-23
BIOS Setup

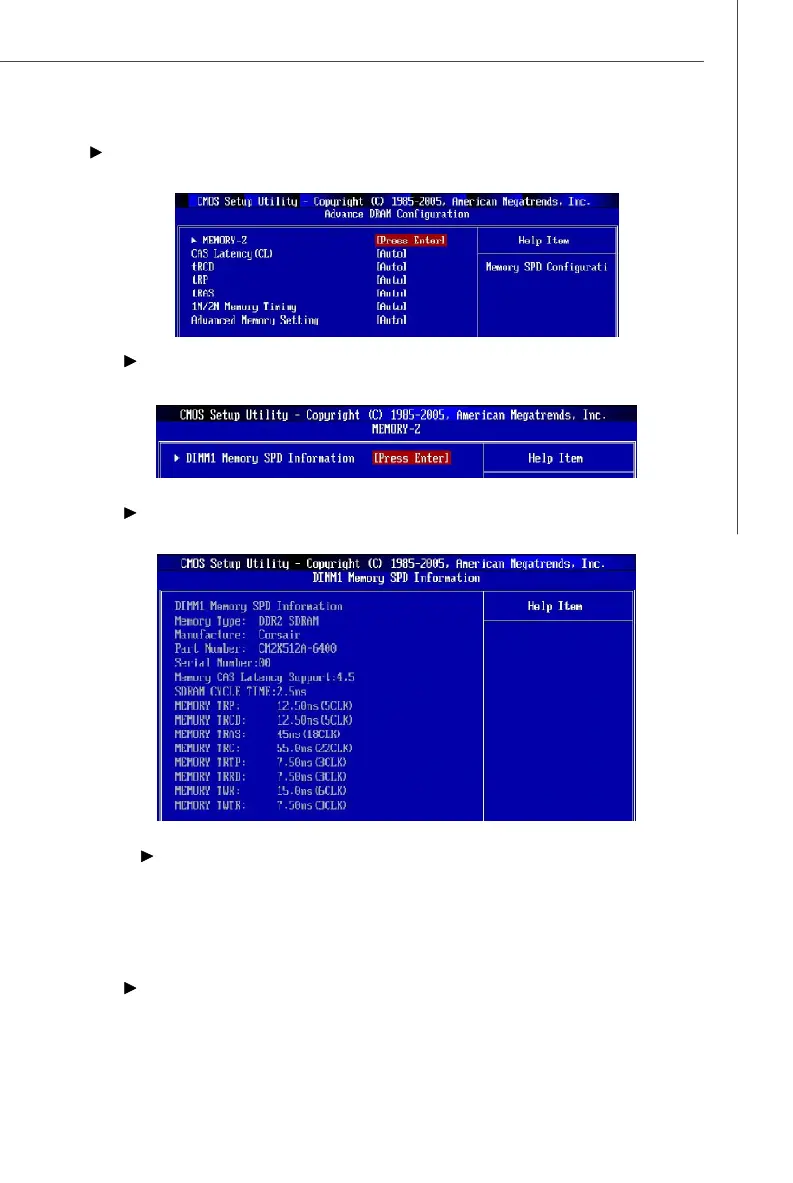

Advance DRAM Configuration
Press <Enter> to enter the sub-menu and the following screen appears.
MEMORY-Z
Press <Enter> to enter the sub-menu and the following screen appears.
DIMM1~4 Memory SPD Infromation
Press <Enter> to enter the sub-menu and the following screen appears.
DIMM1~4 Memory SPD Infromation
These items display the current status of the current DIMM Memory speed
information such as memory type, max bandwidth, manufacture, part number,
serial number, SDRAM cycle time, DRAM TCL, DRAM TRCD, DRAM TRP, DRAM
TRAS, DRAM TRFC, DRAM TWR, DRAM TWTR, DRAM TRRD and DRAM TRTP.
They are read only.
CAS# Latency (CL)
This controls the CAS latency, which determines the timing delay (in clock cycles)
before SDRAM starts a read command after receiving it.
