BIOS Setup
TRTP
When the Adcance Memory Setting sets to [Manual], the field is adjustable.
Time interval between a read and a precharge command.
CHA TRD/ TRD2RD/ TWR2WR/ TWR2RD/ /TWD2WR/ TRD Phase
When the Adcance Memory Setting sets to [Manual], these fields are
adjustable. These items is used to set the memory timings for memory channel A.
CHB TRD/ TRD2RD/ TWR2WR/ TWR2RD/ TRD2WR/ TRD Phase
When the Adcance Memory Setting sets to [Manual], these fields are
adjustable. These items is used to set the memory timings for memory channel B.
FSB/DRAM Ratio
This item will allow you to adjust the ratio of FSB to memory.
Adjusted DRAM Frequency (MHz)
It shows the adjusted DDR Memory frequency. Read-only.

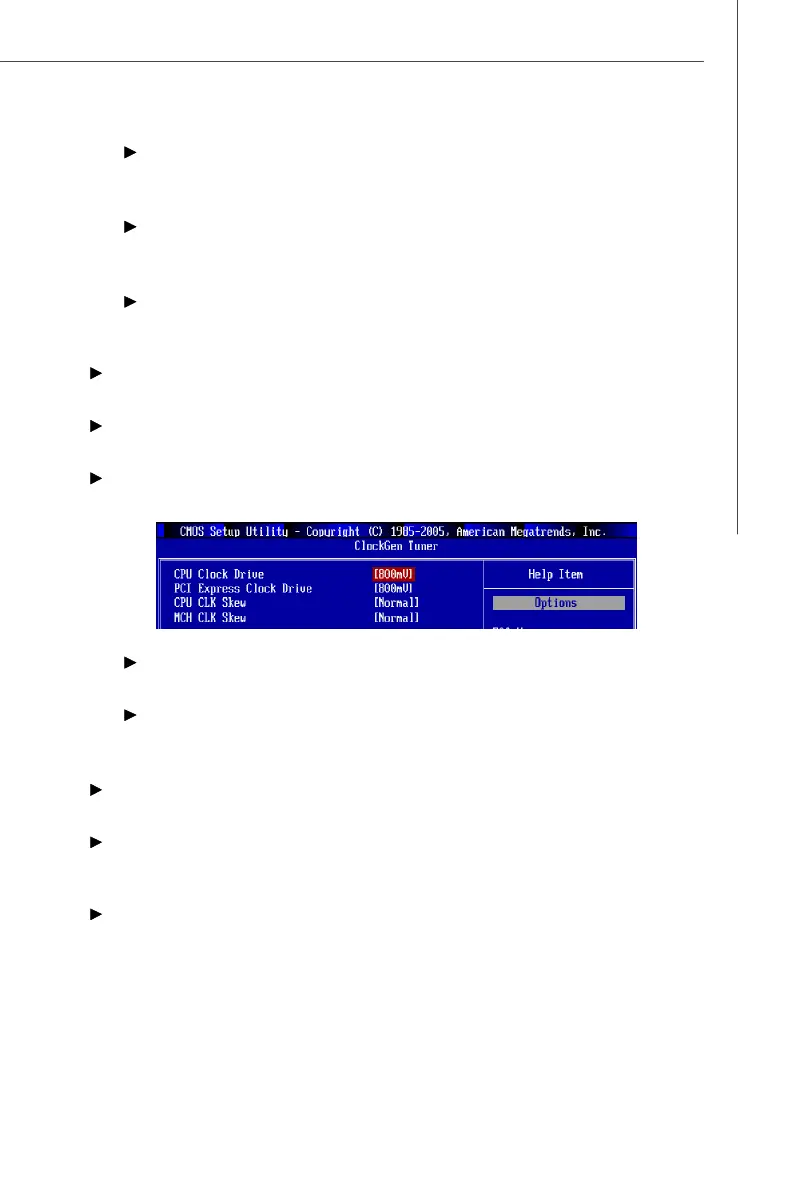

ClockGen Tuner
Press <Enter> to enter the sub-menu.
CPU Clock Drive/ PCI Express Clock Drive
These items are used to select the CPU/ PCI Express clock amplitude.
CPU CLK Skew/ MCH CLK Skew
These items are used to select the CPU/ North Bridge chipset clock skew. They
can help CPU to reach the higher overclocking performace.
Adjust PCI Frequency (MHz)
This field allows you to select the PCI frequency (in MHz).
Auto Disable DRAM/PCI Frequency
When set to [Enabled], the system will remove (turn off) clocks from empty DIMM and
PCI slots to minimize the electromagnetic interference (EMI).
CPU Voltage (V)/ CPU GTL REF0 / CPU GTL REF1 / DRAM Voltage (V)/ MCH
Voltage (V)/ MCH GTL REF / VTT FSB Voltage (V)/ ICH Voltage (V)
These items are used to asjust the voltage of CPU, Memory, FSB and chipset.
