MSI MS-7666 - Quick Components Guide

2-2
Hardware Setup
MS-7666
Chapter 2
Hardware Setup
MS-7666
Chapter 2
OC
Ge ni e

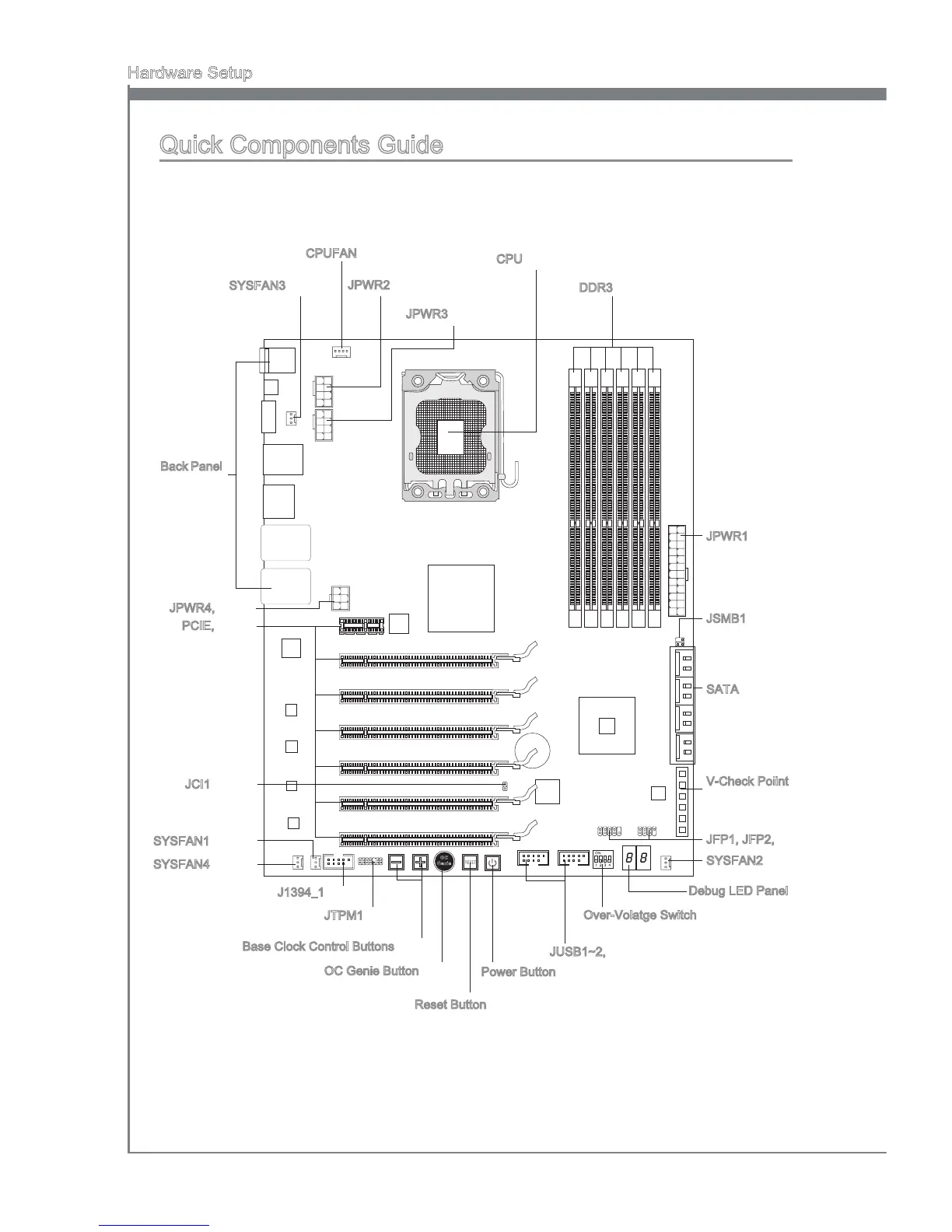

Quick Components Guide
Back Panel,
p.2-12
CPU, p.2-3
CPUFAN, p.2-15
DDR3, p.2-7
Reset Button, p.2-19
JPWR2, p.2-10
JPWR1, p.2-10
SYSFAN2, p.2-15
SATA, p.2-14
JFP1, JFP2, p.2-17
JUSB1~2, p.2-16
Base Clock Control Buttons p.2-20
OC Genie Button, p.2-20
J1394_1, p.2-17
JPWR4, p.2-11
JCI1, p.2-16
JTPM1, p.2-18
PCIE, p.2-23
SYSFAN3, p.2-15
Over-Volatge Switch, p.2-21
JPWR3, p.2-10
JSMB1, p.2-18
Debug LED Panel, p.2-33
V-Check Poiint, p.2-22
Power Button, p.2-19
SYSFAN4, p.2-15
SYSFAN1, p.2-15
