Hardware Setup
MS-7666
Chapter 2

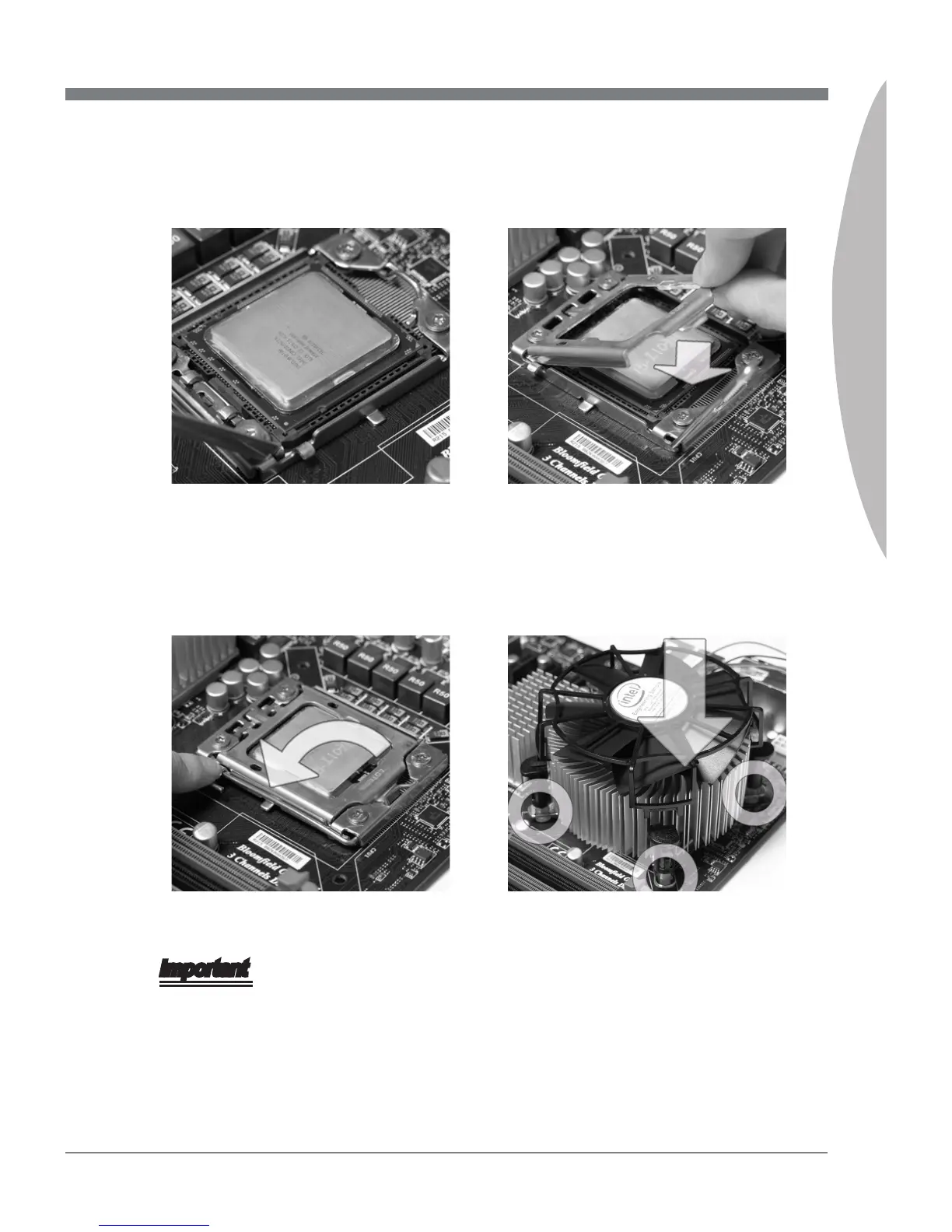

Visually inspect if the CPU is seated
well into the socket. If not, take out
the CPU with pure vertical motion
and reinstall.
5. Cover the load plate onto the pack-
age.
6.
Press down the load lever lightly onto
the load plate, and then secure the
lever with the hook under retention
tab.
7. Align the holes on the mainboard with
the heatsink. Push down the cooler
until its four clips get wedged into the
holes of the mainboard.
8.
Important
Conrm if your CPU cooler is rmly installed before turning on your system.
Do not touch the CPU socket pins to avoid damaging.
•
•
