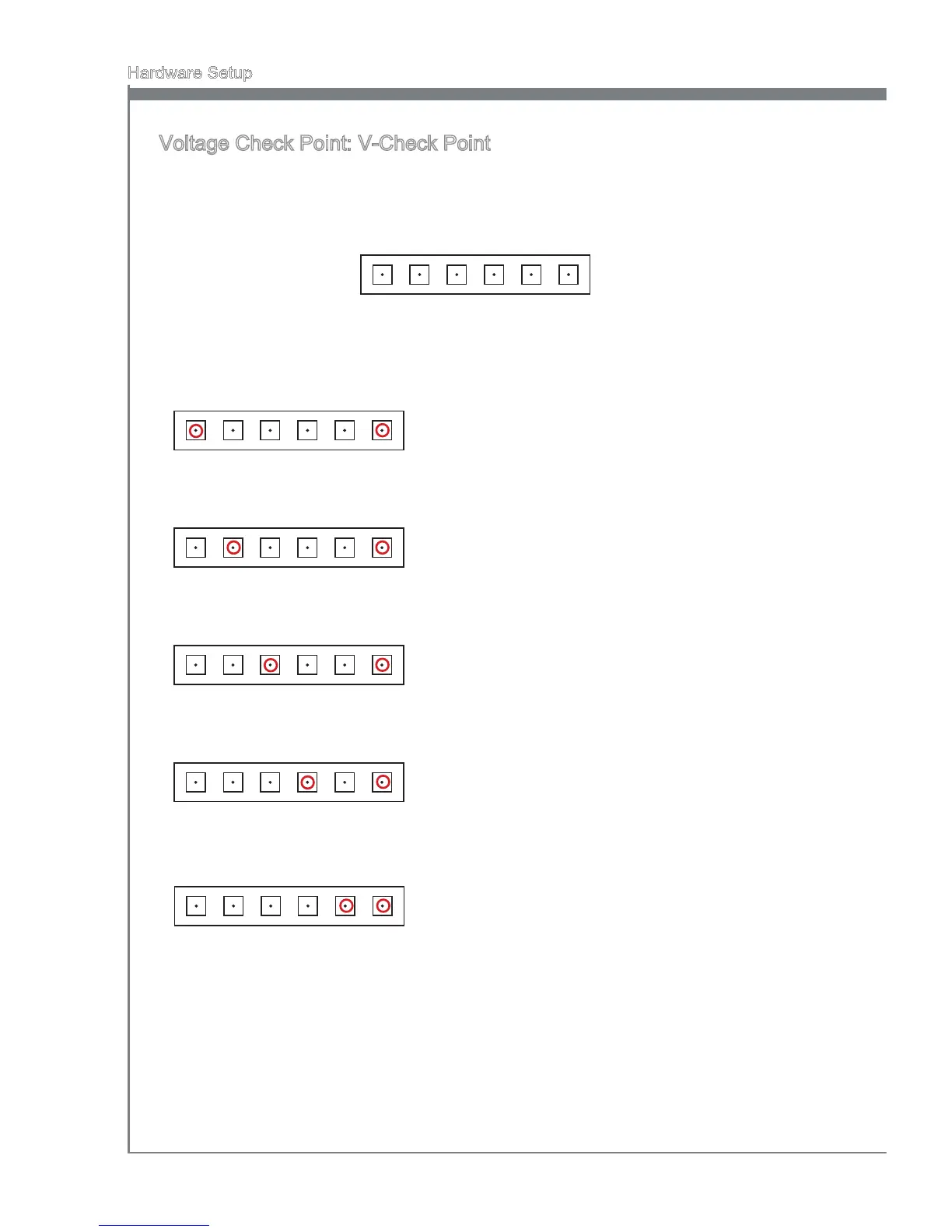

Voltage Check Point: V-Check Point
This voltage check point set is used to measure the current CPU/ QPI/ DDR/ IOH/ ICH
voltage.
CPU
QPI
DDR
IOH
ICH
GND
CPU GND
CPU voltage: measure the current CPU voltage
with CPU point and GND point by using a mul-
timeter.
QPI GND
QPI voltage: measure the current QPI voltage
with QPI point and GND point by using a mul-
timeter.
DDR GND
DDR voltage: measure the current DDR voltage
with DDR point and GND point by using a mul-
timeter.
IOH GND
IOH voltage: measure the current IOH voltage
with IOH point and GND point by using a mul-
timeter.
ICH
GND
ICH voltage: measure the current ICH voltage
with ICH point and GND point by using a mul-
timeter.
