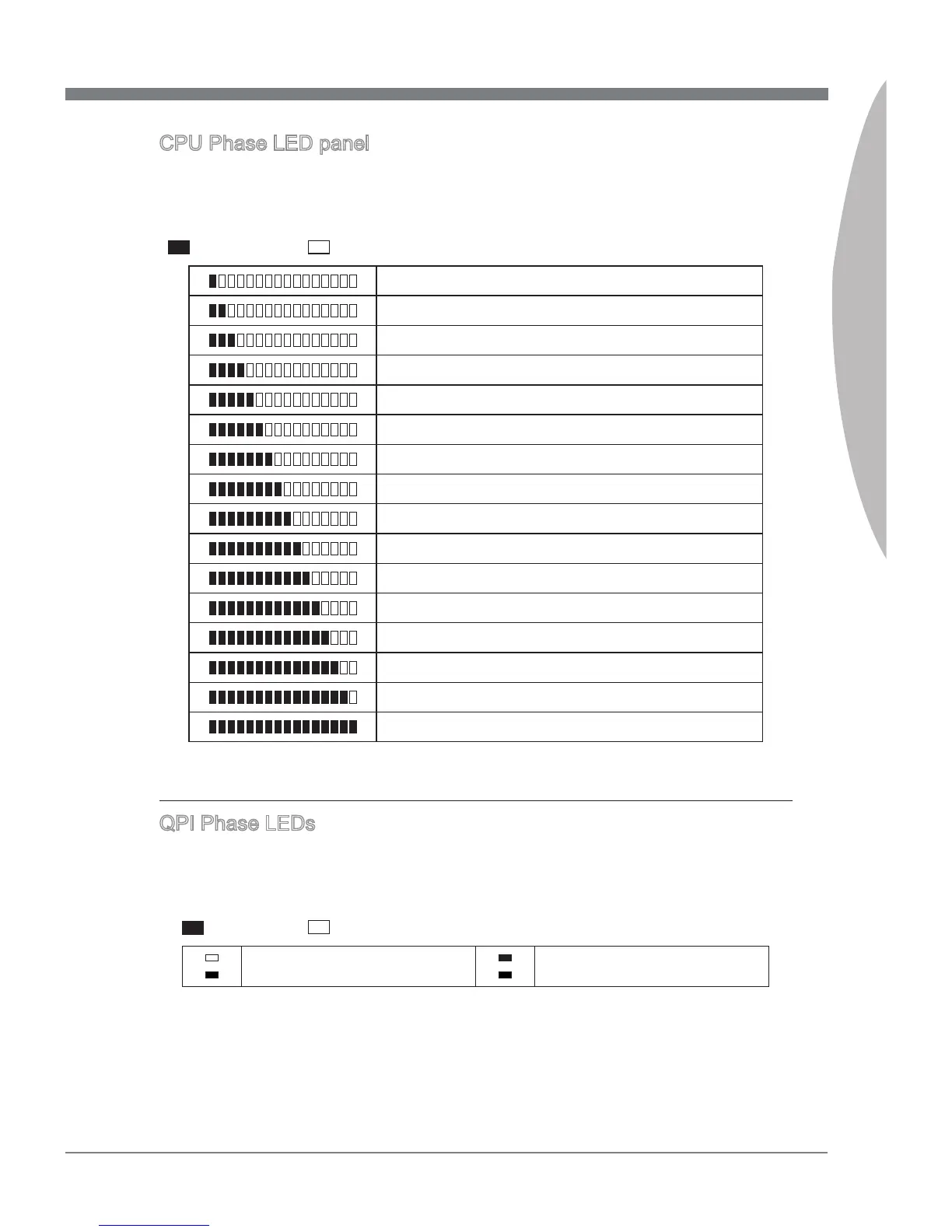

CPU Phase LED panel
These LEDs indicate the current CPU power phase mode. Follow the instructions below
to read.
Lights O󰘯
CPU is in 1 phase power mode.
CPU is in 2 phase power mode.
CPU is in 3 phase power mode.
CPU is in 4 phase power mode.
CPU is in 5 phase power mode.
CPU is in 6 phase power mode.
CPU is in 7 phase power mode.
CPU is in 8 phase power mode.
CPU is in 9 phase power mode.
CPU is in 10 phase power mode.
CPU is in 11 phase power mode.
CPU is in 12 phase power mode.
CPU is in 13 phase power mode.
CPU is in 14 phase power mode.
CPU is in 15 phase power mode.
CPU is in 16 phase power mode.
QPI Phase LEDs
These LEDs indicate the current QPI power phase mode. Follow the instructions below
to read.
Lights O󰘯
QPI is in 1 phase power mode. QPI is in 2 phase power mode.
