Hardware Setup

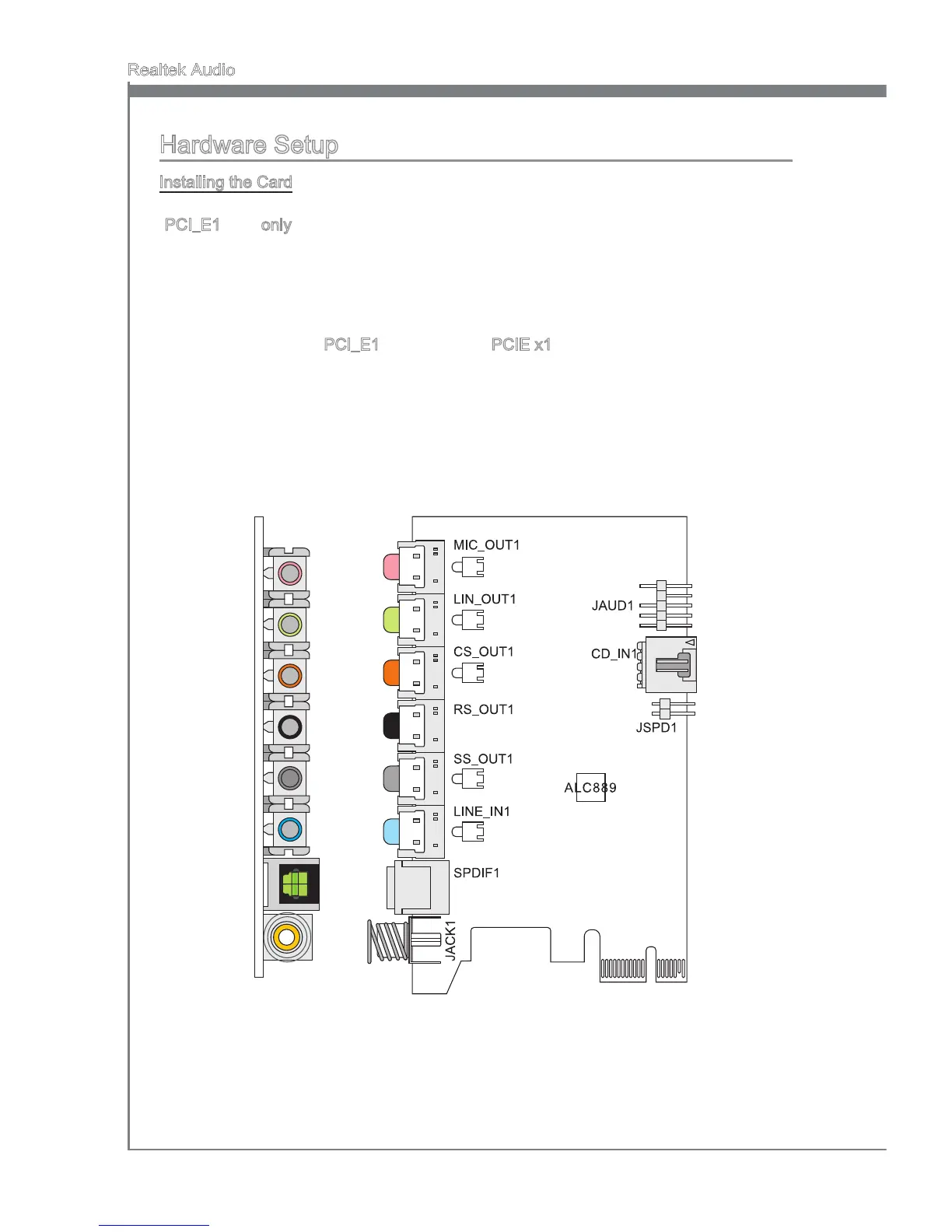

Installing the Card
The interface of this Audio Card is PCIE x1. And you can install it to the PCIE x1
(PCI_E1) slot only.
Follow the steps below to install the audio card, then you can activate the advanced
function and enjoy the audio e󰘯ect.
Turn o󰘯 your computer and disconnect the power cord.
Open and remove the case of the computer.
Find the PCIE x1 (PCI_E1) slot. Only the PCIE x1 slot supports installing the audio
card.
Remove the bracket which may obstruct the installed PCIE x1 slot.
Gently but 󰘰rmly install the Audio Card to the PCIE x1 slot and secure the card
bracket with a screw.
Replace and secure the case. Reconnect the power cord to the computer.
1.
2.
3.
4.
5.
6.
