Hardware Setup
MS-7667
Chapter 2
Back Panel
Coaxial S/PDIF-Out
This S/PDIF (Sony & Philips Digital Interconnect Format) connector is provided for digi-
tal audio transmission to external speakers through a coaxial cable.
Optical S/PDIF-Out
This S/PDIF (Sony & Philips Digital Interconnect Format) connector is provided for digi-
tal audio transmission to external speakers through an optical ber cable.
IEEE 1394 Port
The IEEE 1394 port on the back panel provides connection to IEEE 1394 devices.
eSATA Port
The eSATA (External SATA) port is for attaching the eSATA hard drive.
USB 2.0 Port
The USB 2.0 port is for attaching USB devices such as keyboard, mouse, or other USB-
compatible devices. Supports data transfer rate up to 480Mbit/s
(Hi-Speed).
▶
▶
▶
▶
▶

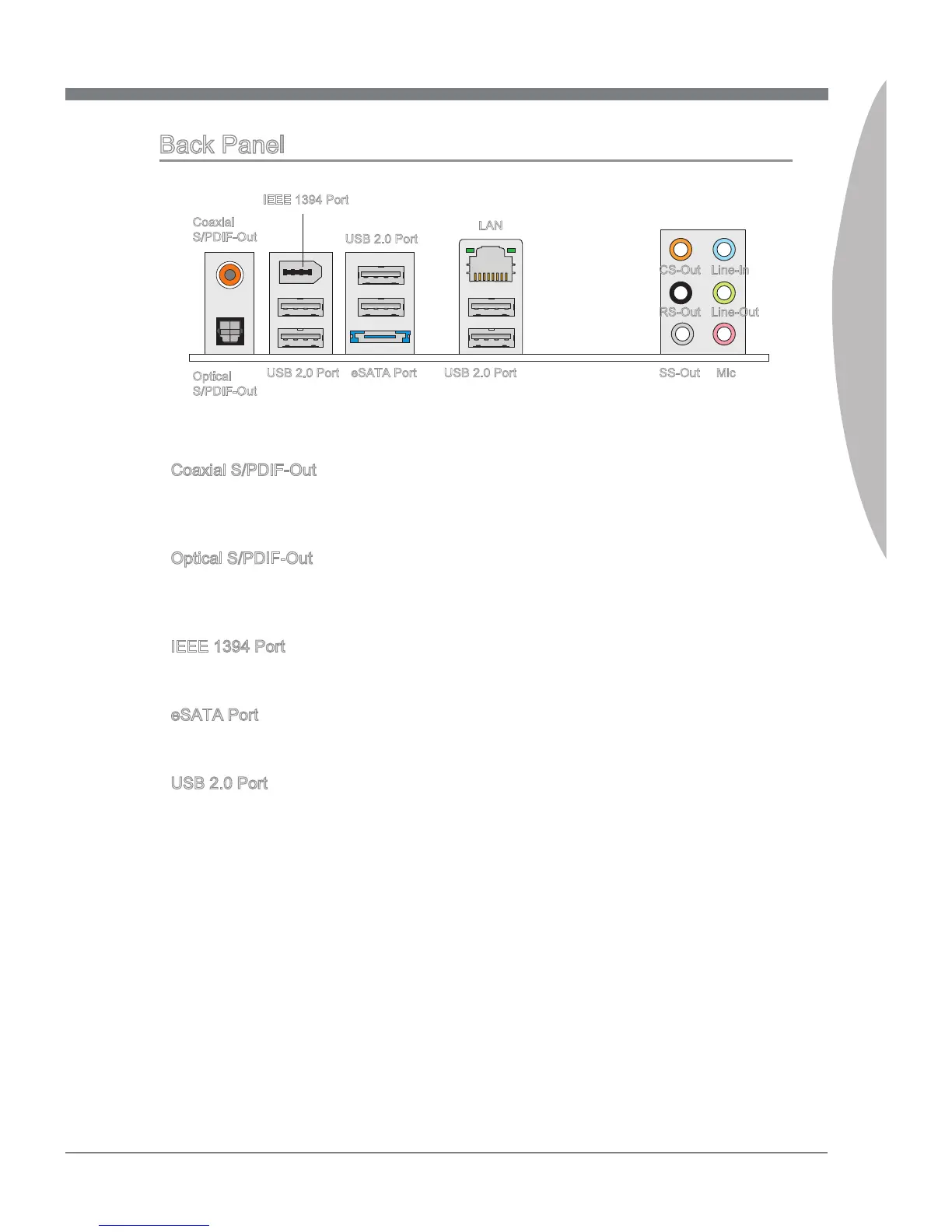

LAN
Line-In
Line-Out
Mic
IEEE 1394 Port
RS-Out
CS-Out
SS-Out
USB 2.0 Port
Optical
S/PDIF-Out
Coaxial
S/PDIF-Out
eSATA Port USB 2.0 Port
USB 2.0 Port
