MSI MS-7667 - Quick Components Guide

2-2
Hardware Setup
MS-7667
Chapter 2
Hardware Setup
MS-7667
Chapter 2

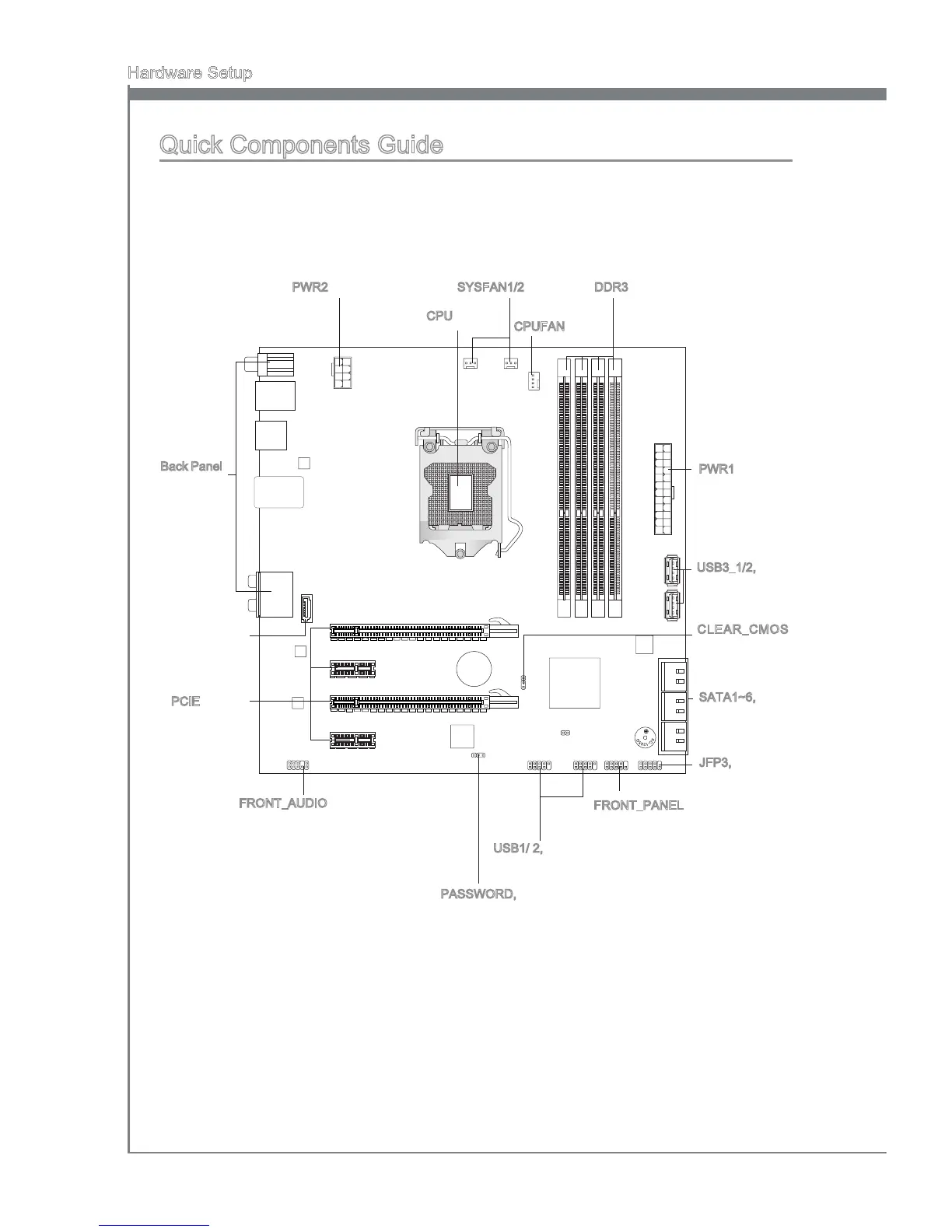

Quick Components Guide
Back Panel,
p.2-11
CPU, p.2-4
CPUFAN, p.2-14
DDR3, p.2-8PWR2, p.2-10
PWR1, p.2-10
CLEAR_CMOS,
p.2-17
SATA1~6, p.2-13
JFP3, p.2-16
FRONT_PANEL, p.2-14
USB3_1/2, p.2-15
FRONT_AUDIO, p.2-16
PCIE, p.2-18
SYSFAN1/2, p.2-14
PASSWORD, p.2-17
USB1/ 2, p.2-15
ESATA, p.2-13
