2-13
Hardware Setup
MS-7667
Chapter 2
Connectors

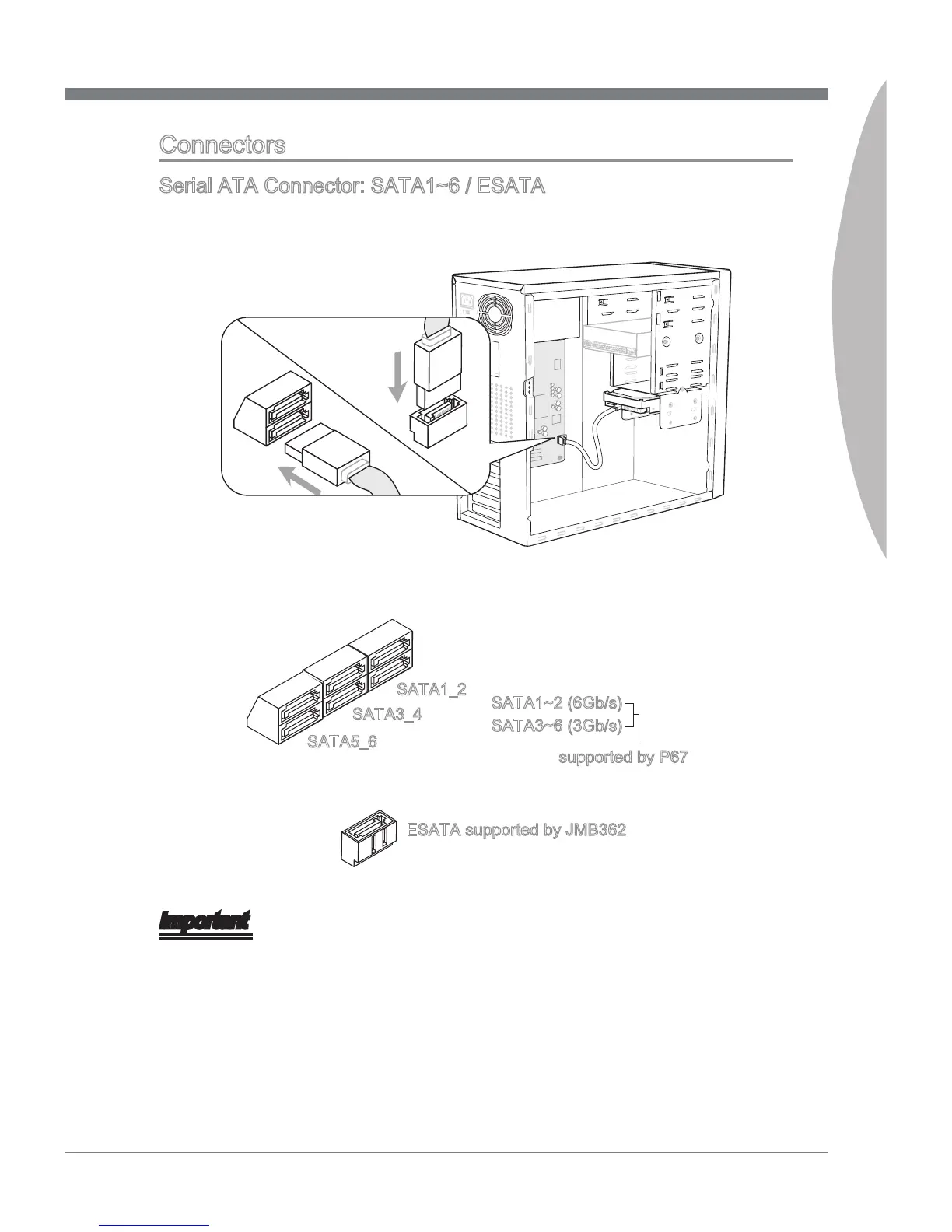

Serial ATA Connector: SATA1~6 / ESATA
This connector is a high-speed Serial ATA interface port. Each connector can connect
to one Serial ATA device.
* The MB layout in this gure is for reference only.
SATA1~2 (6Gb/s)
SATA3~6 (3Gb/s)
SATA3_4
SATA1_2
SATA5_6
ESATA supported by JMB362
supported by P67
Important
Please do not fold the Serial ATA cable into a 90-degree angle. Otherwise, data loss
may occur during transmission.
