These DIMM slots are intended for memory modules.
Installing Memory Modules
Locate the DIMM1 SO-DIMM slot. Align the notch on the DIMM with the
key on the slot and insert the DIMM into the slot at 45-degree angle.
Push the DIMM gently forwards until the slot levers click and lock the
DIMM in place. Follow the same procedures to install the second DIMM
if necessary.
To uninstall the DIMM, ip the slot levers outwards and the DIMM will
be released instantly.
Important
You can barely see the golden nger if the DIMM is properly inserted in the
DIMM slot.
1.
2.
3.

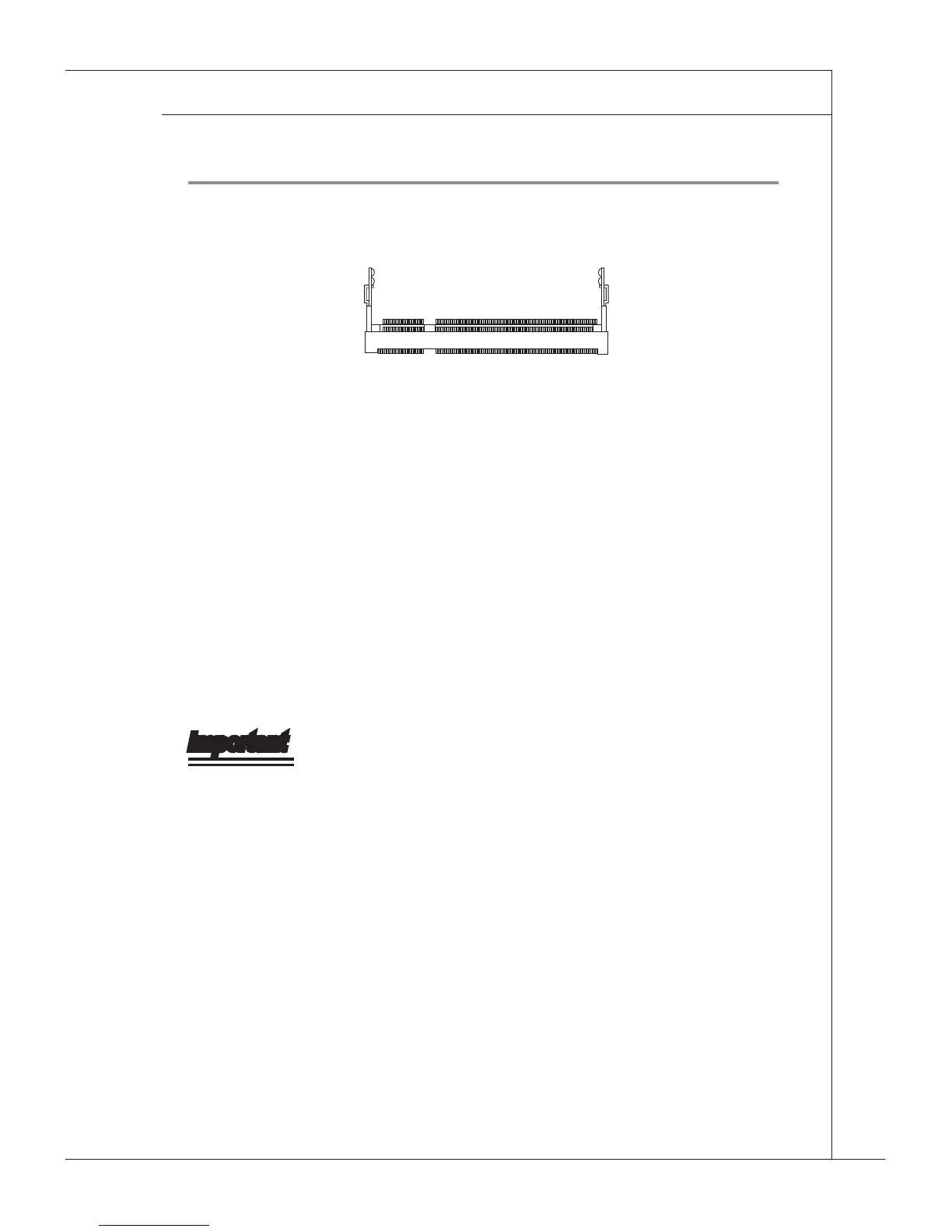

DDR2 SO-DIMM Slot
200-pin, 1.8V
