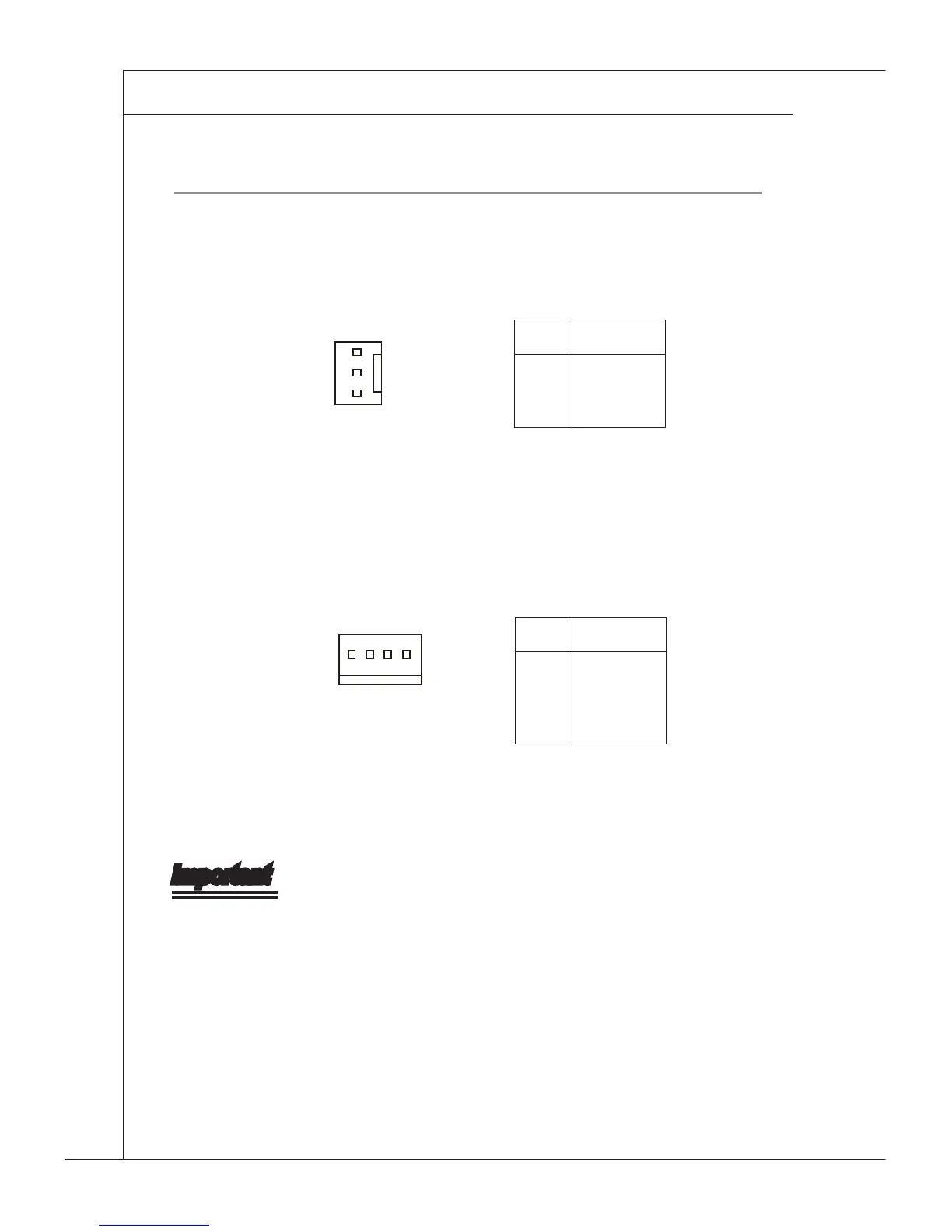

HARDWARE SETUP ▍
power supply
5V/12V HDD Power Connector: JPWR1
This connector provides power to the hard disk drives.
12V System Power Connector: PWR1
This connector provides power to the system.
Important
Power supply of 200watts (and above) is highly recommended for system
stability.
PIN SIGNAL
1
2
3
GND
VCC5
+12V
JPWR1
1
3
PWR1
14
PIN SIGNAL
1
2
3
4
+12V
+12V
GND
GND
