MSI MS-9856 - Back Panel I;O

2-5
MS-9856

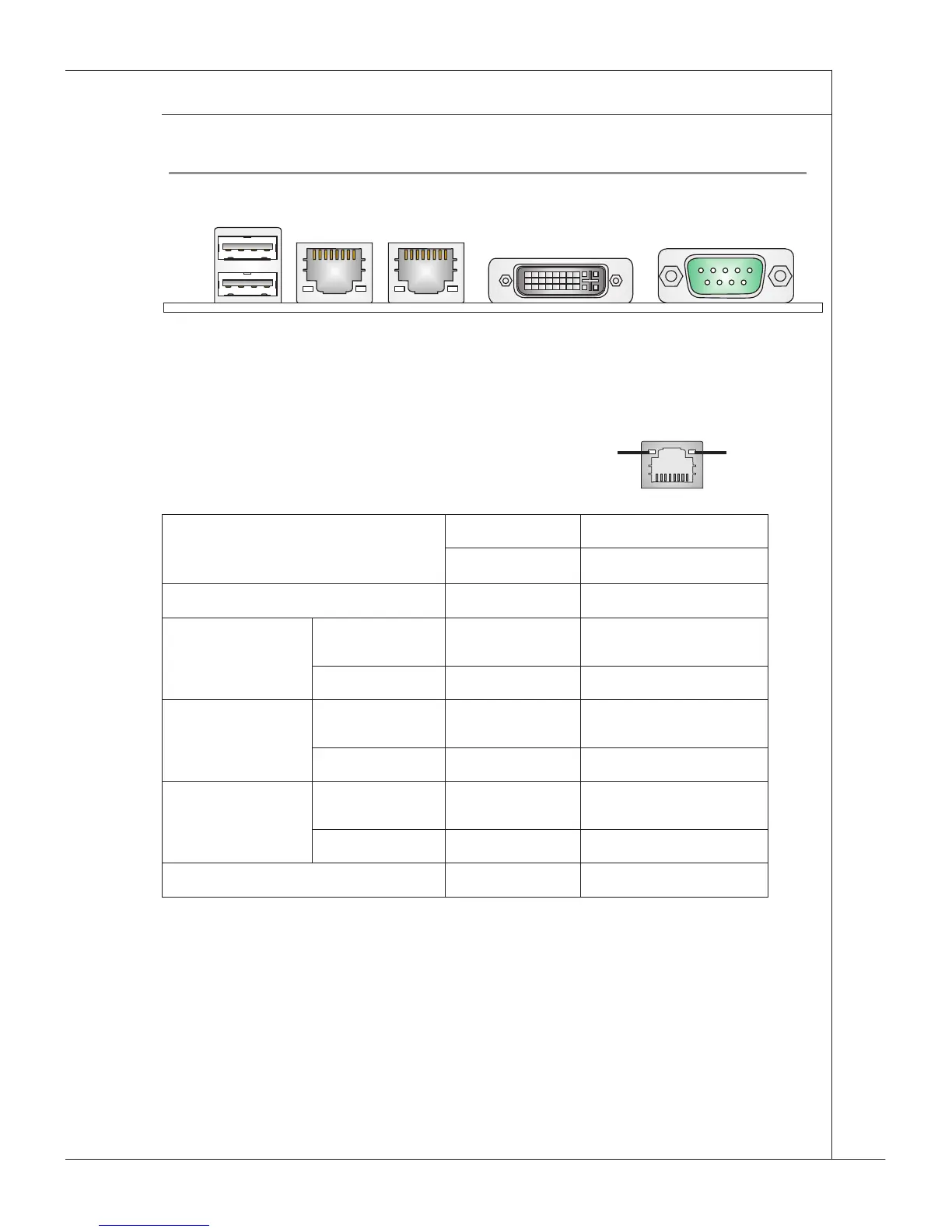

Back panel i/o
USB Port
The USB (Universal Serial Bus) port is for attaching USB devices such as keyboard,
mouse, or other USB-compatible devices.
LAN
The standard RJ-45 LAN jack is for connec-
tion to the Local Area Network (LAN). You can
connect a network cable to it.
Left LED Right LED
Active LED 100M/1000M Speed LED
LED Color
Yellow Green/Orange
10M Cable Plug-in
No Transmis
-
sion
OFF OFF
Transition
Yellow (Blinking) OFF
100M Cable
Plug-in
No Transmis
-
sion
OFF Green (Lighting)
Transition
Yellow (Blinking) Green (Lighting)
1000M Cable
Plug-in
No Transmis
-
sion
OFF Orange (Lighting)
Transition
Yellow (Blinking) Orange (Lighting)
In S3/S4/S5 Standby State Green (Lighting) OFF
DVI-I Port
The DVI-I (Digital Visual Interface-Integrated) connector allows you to connect an
LCD monitor. It provides a high-speed digital interconnection between the computer
and its display device. To connect an LCD monitor, simply plug your monitor cable
into the DVI connector, and make sure that the other end of the cable is properly
connected to your monitor (refer to your monitor manual for more information.)
Serial Port
The serial port is a 16550A high speed communications port that sends/ receives
16 bytes FIFOs. You can attach a serial mouse or other serial devices directly to
the connector.
▶
▶
▶
▶
Speed IndicatorActivity Indicator
Serial Port
USB Port
DVI-I Port
LAN LAN
