2-12
HARDWARE SETUP ▍
Important

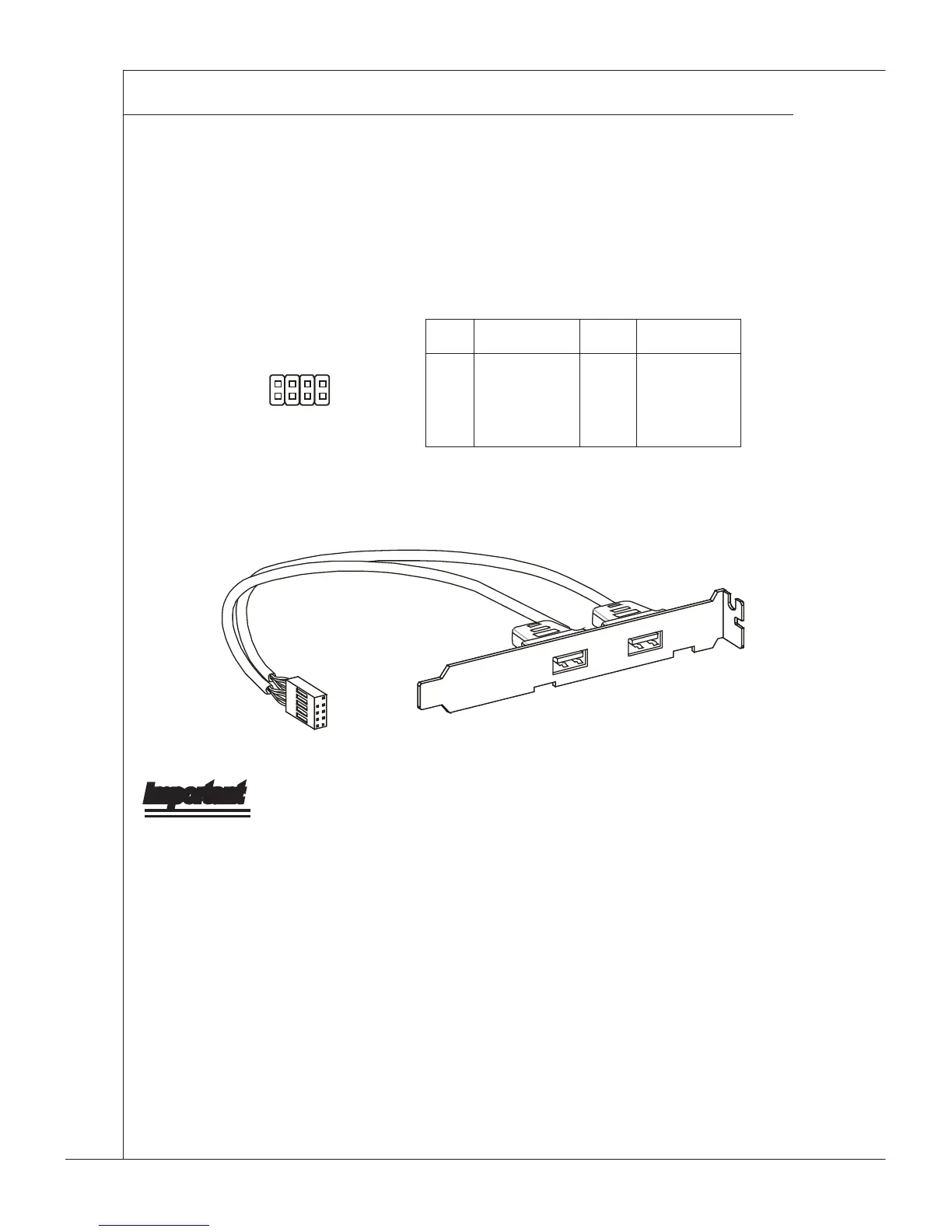

Front USB Connector: JUSB1
This connector, compliant with Intel I/O Connectivity Design Guide, is ideal for con-
necting high-speed USB interface peripherals such as USB HDD, digital cameras,
MP3 players, printers, modems and the like.
USB 2.0 Bracket
(Optional)
Important
Note that the pins of VCC and GND must be connected correctly to avoid possible
damage.
PIN SIGNAL PIN SIGNAL
1
3
5
7
USB_RSTR
SBD1+
SBD1-
GND
2
4
6
8
GND
SBD0-
SBD0+
USB_RSTR
1
2
7
8
JUSB1
