Hardware Setup 󰀩

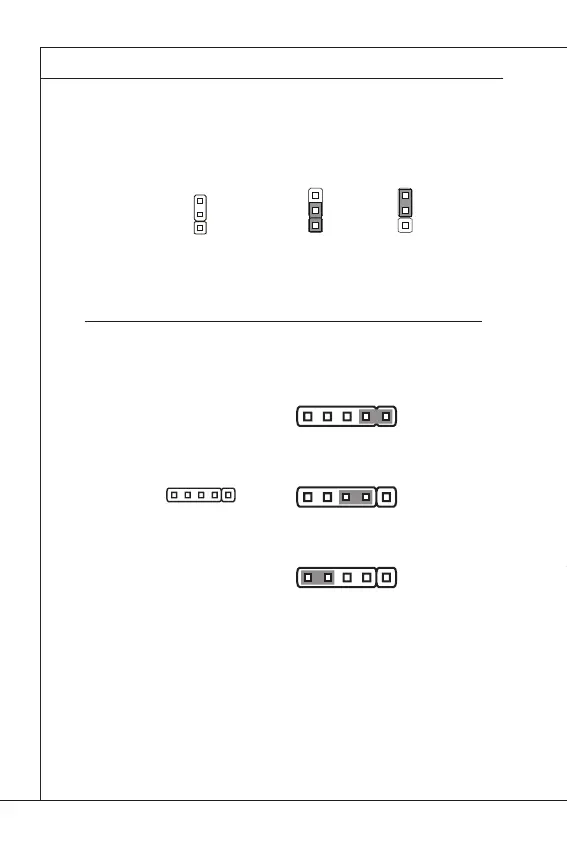

Serial Port Power Jumper: JCOMP1
This jumper specify the operation voltage of the onboard serial ports.
1 1
1
+5V +12V
JCOMP1
LVDS Power Jumper: J1
Use this jumper to specify the LVDS power.
J1
1
1
+3V
1
+5V
1
+12V
