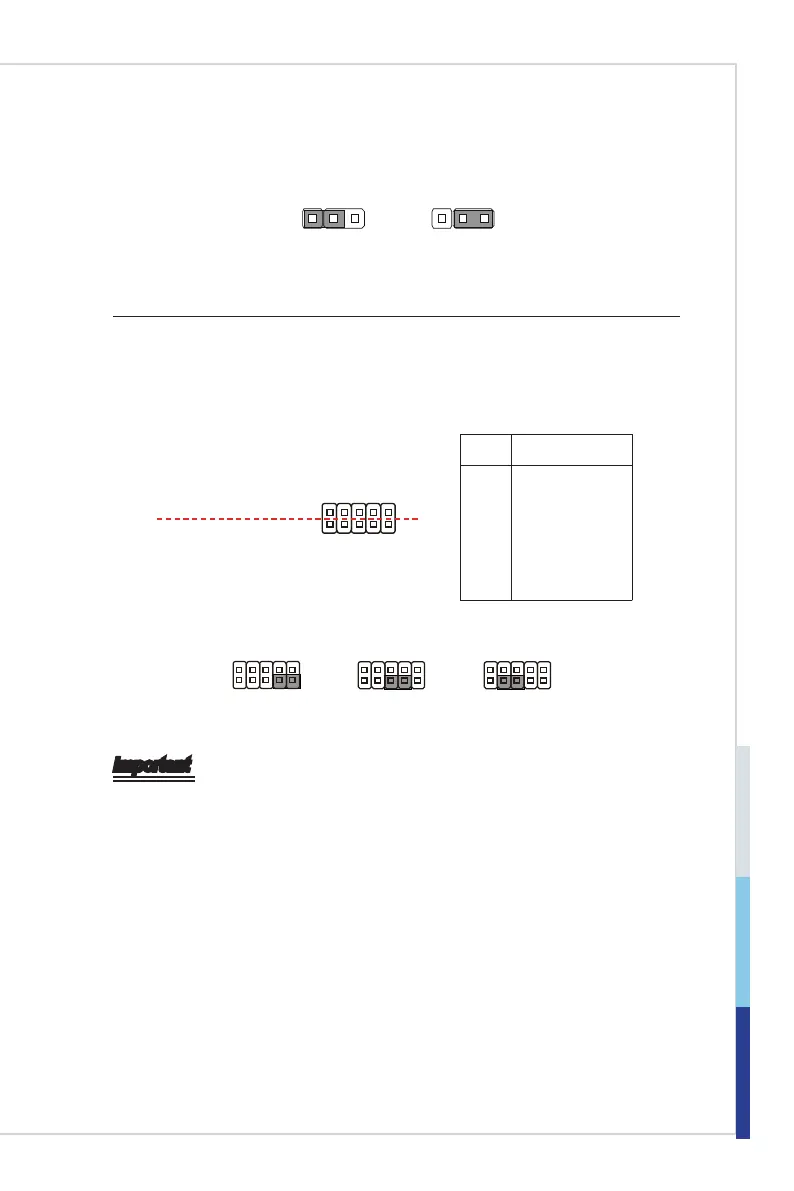

Serial Port Power Jumper: JCOMP1
This jumper specifies the operation voltage of the COM1 serial port.
+5V +12V
11
Backlight Header & LVDS Power Jumper: JLCD1
The backlight connector is provided for LCD backlight options while the LVDS
power jumper allows users to select the operation voltage of the LVDS flat
panel.
1
2
9
10
VCC5
1
2
9
10
VCC3
1
2
9
10
VCC3
PIN SIGNAL
1
3
5
7
9
VCC5
L_BKLTCTL
INV_ON
GND
+12V
Backlight Connector
LVDS Power Jumper
1
2
9
10
Important
Pin 2, 4, 6, 8 are panel power voltage select pins while pin 1, 3, 5, 7 are inverter
voltage and control pins.
