MSI MS-B906 - Installing CPU

•
Service Manual
> Installing CPU
Yellow triangle is the
Pin 1 indicator
Load plate
--11-1 1 Ill I

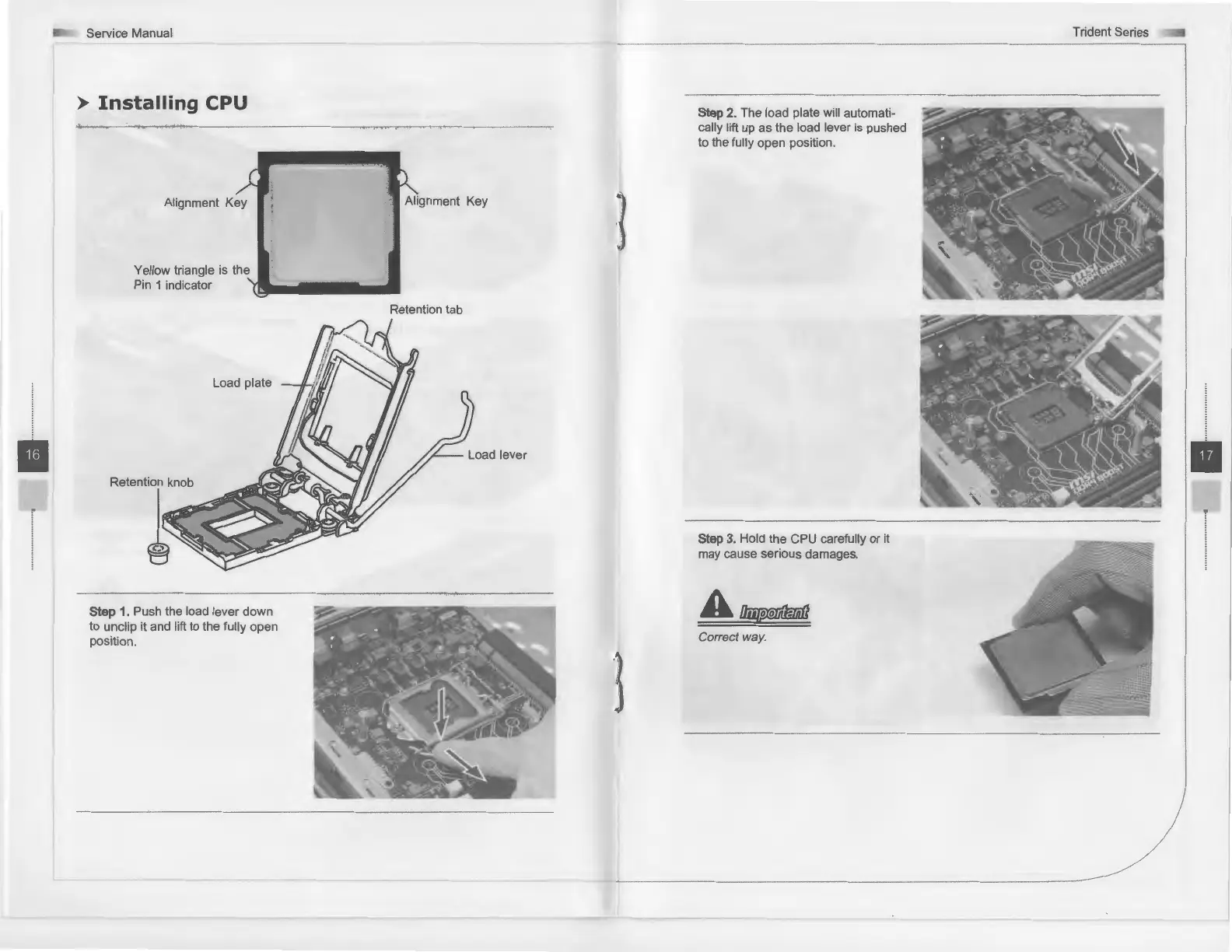

Step 1. Push the load lever down
to unclip it and lift to the fully open
position.
J
Retention tab
Load lever
~
Step 2. The load plate will automati-
cally lift up as the load lever is pushed
to the fully open position.
Step 3. Hold the CPU carefully or it
may cause serious damages.
A~
Correct way.
Trident Series
·-
