Service Manual

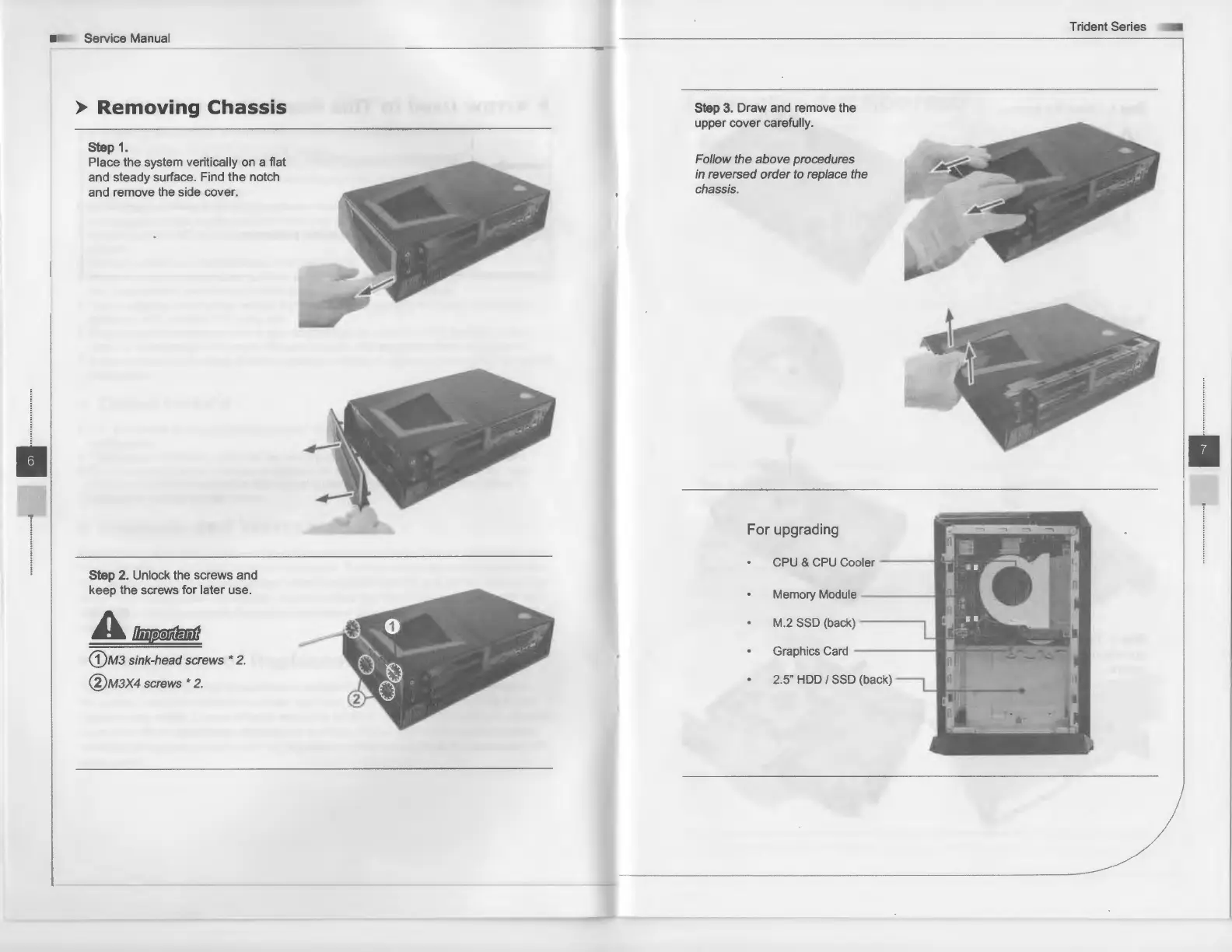

> Removing Chassis
Step 1.
Place the system veritically on a flat
and steady surface. Find the notch
and remove the side cover.
Step 2. Unlock the screws and
keep the screws for later use.
A~
G)M3 sink-head screws * 2.
@M3X4 screws * 2.
Step 3. Draw and remove the
upper cover carefully.
Follow the above procedures
in reversed order to replace the
chassis.
For upgrading
CPU & CPU Cooler ••
Memory Module ••
M.2 SSD (back)---~
Graphics Card •
2.
5" HDD / SSD (back)
Trident Series
•
___ /
