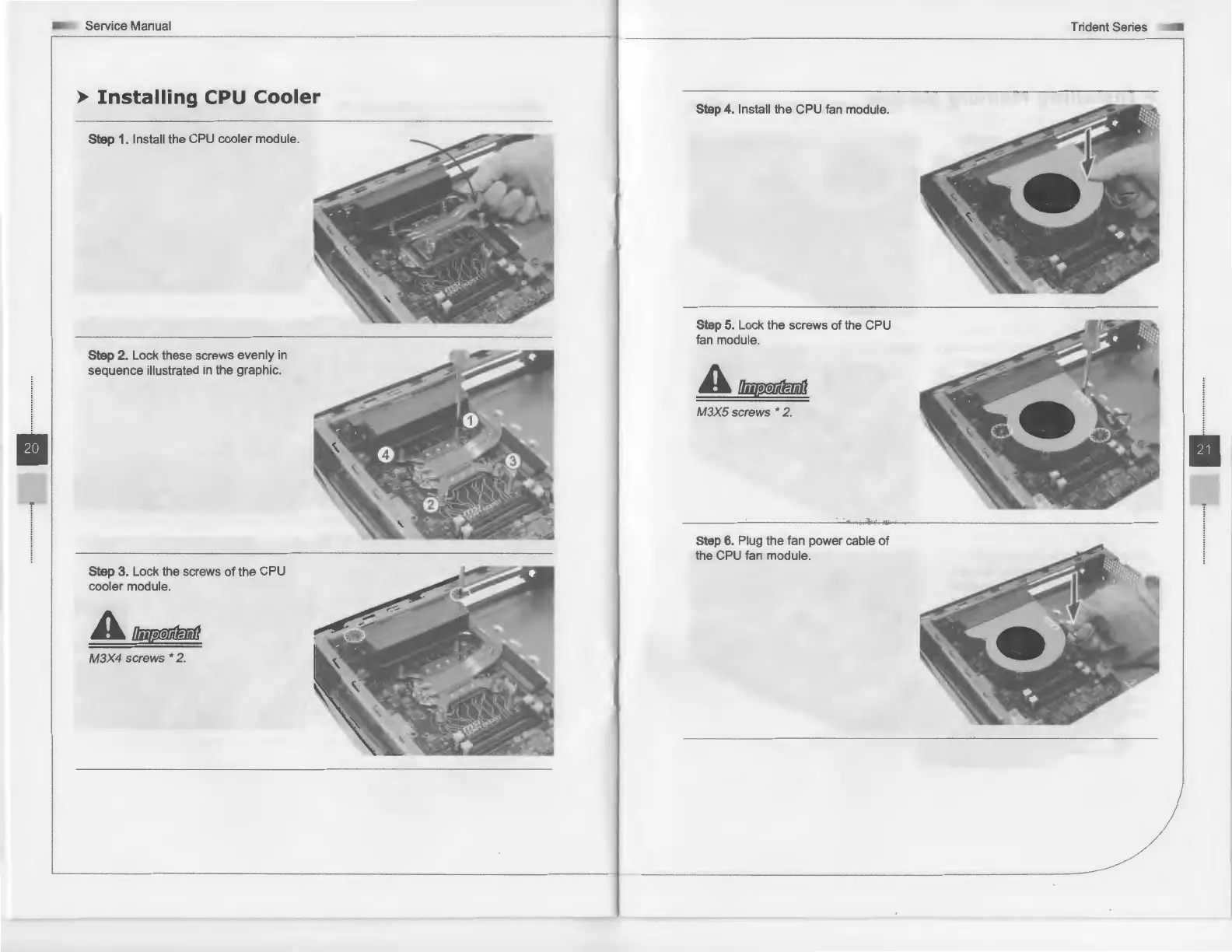

Service Manual
>
Installing
CPU
Cooler
Step
1.
Install the CPU cooler module.
Step
2.
Lock these screws evenly
in
sequence illustrated
in
the graphic.
Step
3.
Lock the screws
of
the CPU
cooler module.
A
ltiifj1§JiuiJi/
M3X4 screws * 2.
Step
4.
Install the CPU fan module.
Step
5. Lock the screws
of
the CPU
fan module.
A~
M3X5 screws *
2.
Step
6.
Plug the fan power cable
of
the CPU fan module.
Trident Series
• 1
