Hardware Setup MS-S0891

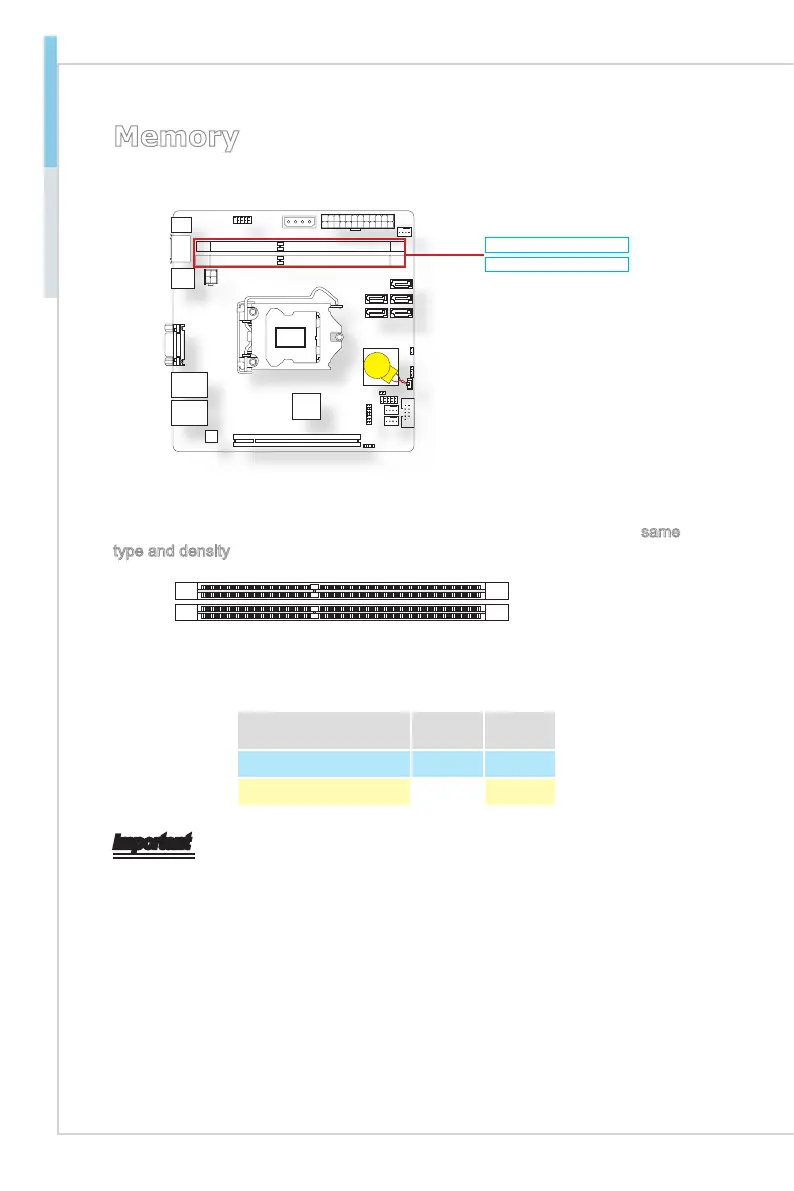

Memory
These DIMM slots are intended for memory modules.
DIMM2 (ch B)
DIMM1 (ch A)
Dual-Channel Mode
In Dual-Channel mode, make sure that you install memory modules of the same
type and density in different channel DIMM slots.
DIMM2 (Channel B)
DIMM1 (Channel A)
Recommended Memory Population
Population Rule 1 2
DIMM1 (ch A) V V
DIMM2 (ch B) V
Important
"V" indicates a populated DIMM slot.
1
st
population on DIMM2 will also boot.
Populate the same DIMM type in each channel, specically: 1. Use the same
DIMM size; 2. Use the same number of ranks per DIMM.
•
•
•
