Hardware Setup MS-S0891
Jumper
Clear CMOS Jumper: JBAT1
There is a CMOS RAM onboard that has a power supply from an external battery
to keep the data of system conguration. With the CMOS RAM, the system can
automatically boot OS every time it is turned on. If you want to clear the system
conguration, set the jumper to clear data.

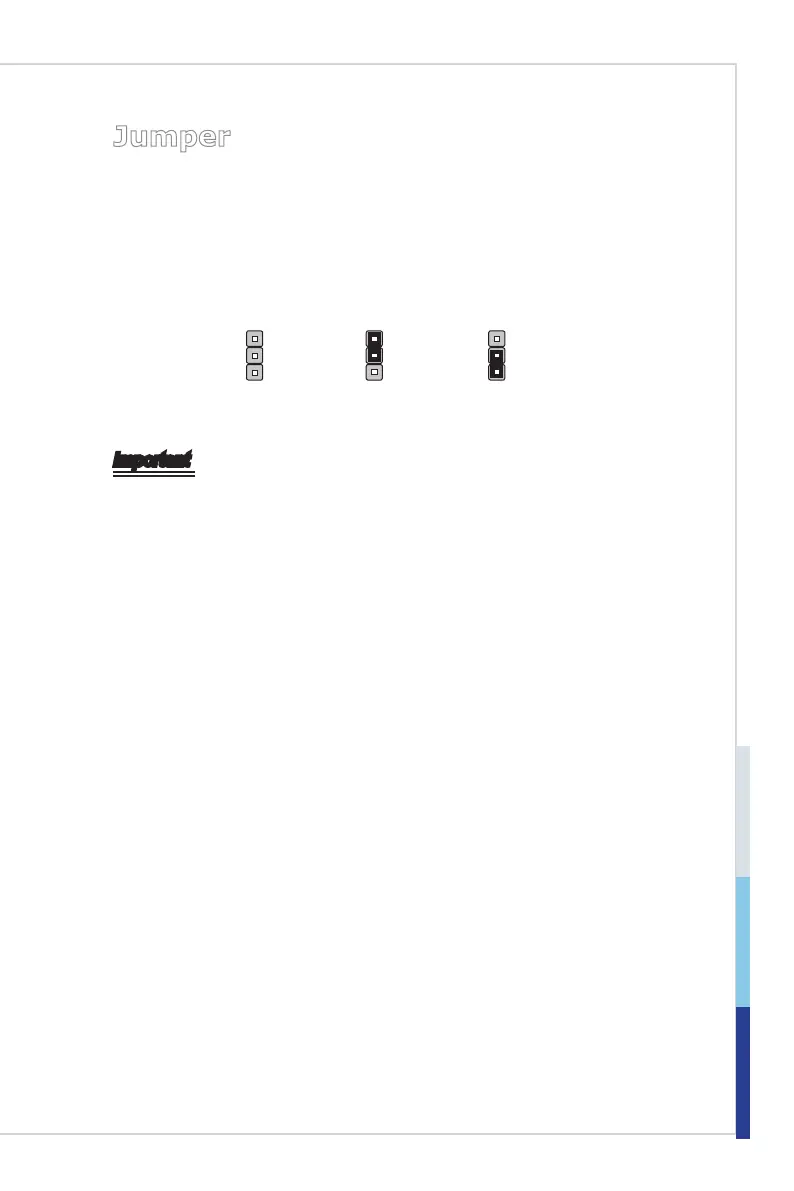

JBAT1
Normal Clear CMOS
1 11
Important
You can clear CMOS by shorting pin 2-3 while the system is off. Then return to
pin 1-2 position. Avoid clearing the CMOS while the system is on; it will damage
the motherboard.
