2-10
Hardware Setup MS-S0891

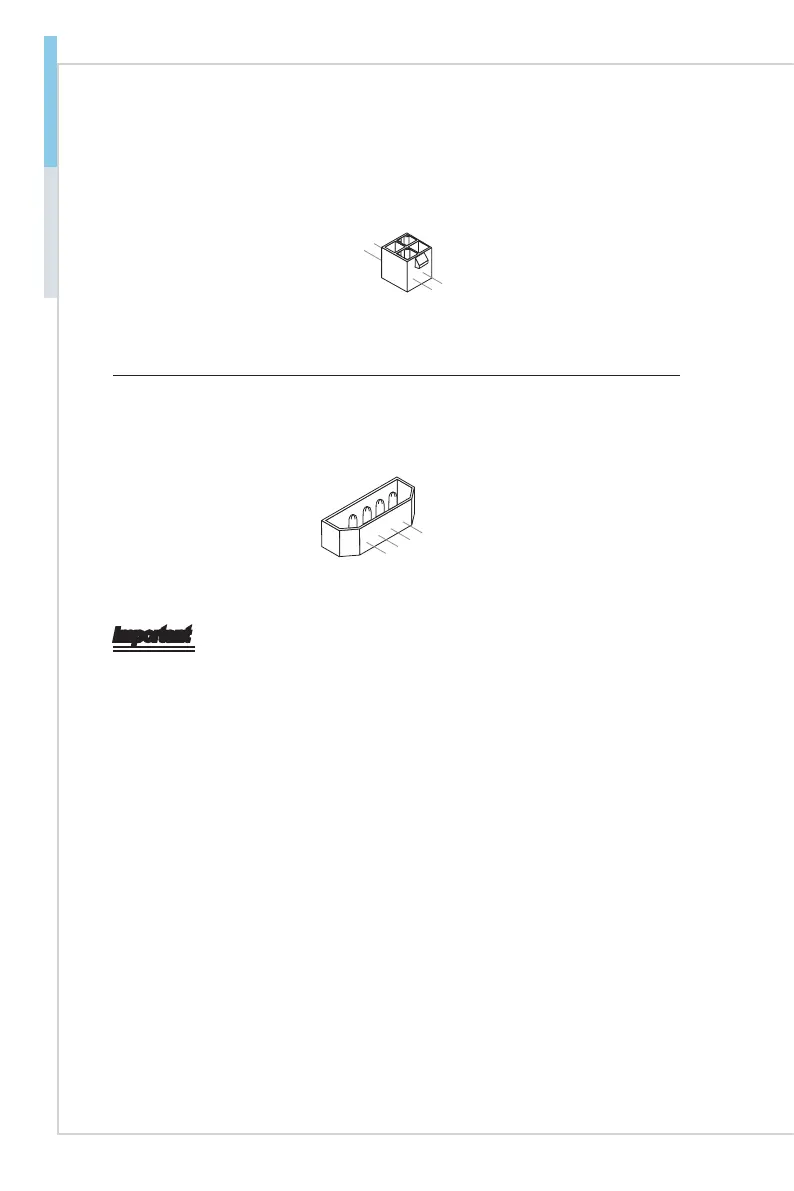

19V Power Connector: JPWR3 (DC-in SKU)
This connector provides 19V power to the system.
4.+19V
2
.Ground
3.+19V
1
.Ground
SATA Power Connector: SATACON1 (DC-in SKU)
This connector provides power to the SATA devices.
2
.Ground
4.+12V
1.+5
V
3
.Ground
Important
Make sure that all power connectors are connected to the power supply to ensure
stable operation of the motherboard.
