2-14
Hardware Setup MS-S0891

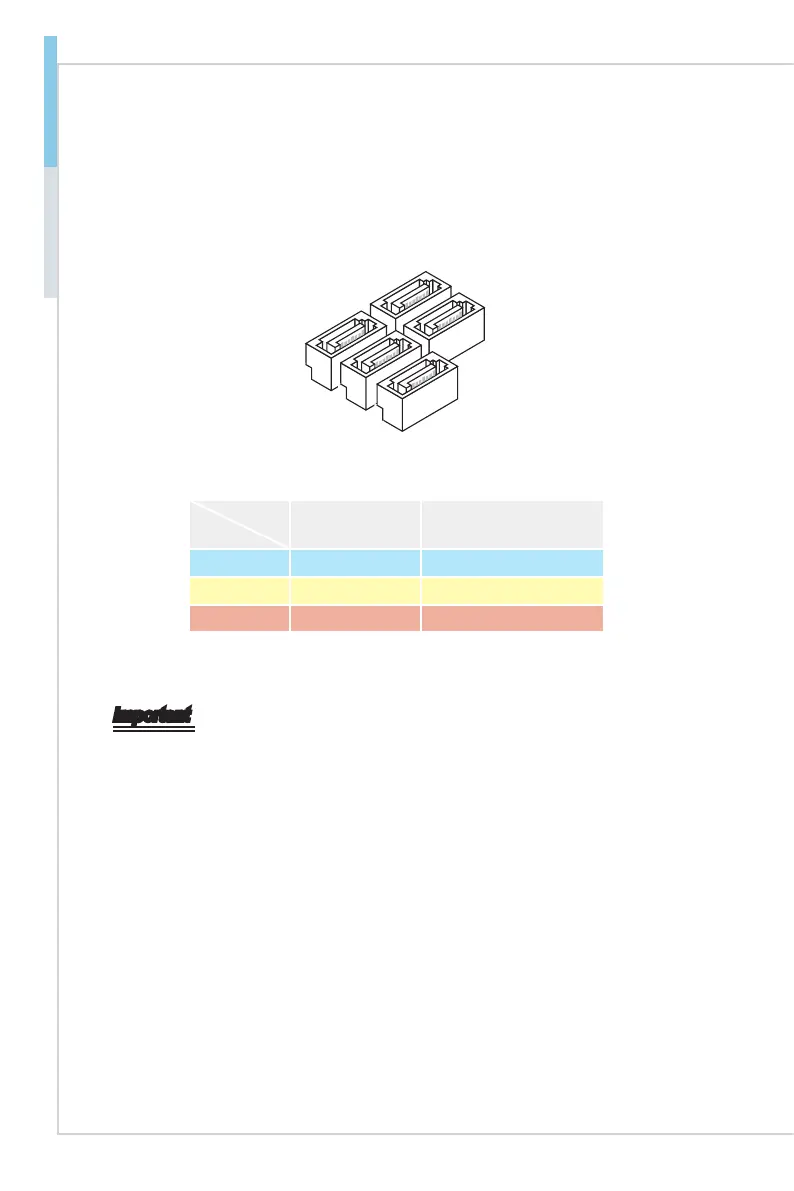

Serial ATA Connector: SATA1 ~ SATA5
This connector is a high-speed Serial ATA interface port. Each connector can
connect to one Serial ATA device. SATA1 ~ SATA2, SATA7 ~ SATA10 are SATA
6Gb/s ports while SATA3 ~ SATA6 are SATA 3Gb/s ports.
SATA1
SATA2
SATA3
SATA5
SATA4
Speed
SKU
SATA 6 Gb/s SATA 3 Gb/s
ATX SATA1, SATA2 SATA3, SATA4, SATA5
DC-in SATA1, SATA2 SATA4, SATA5
ATX IPMI SATA1, SATA2 SATA3, SATA4, SATA5
Important
Please do not fold the SATA cable into a 90-degree angle. Otherwise, data loss
may occur during transmission.
