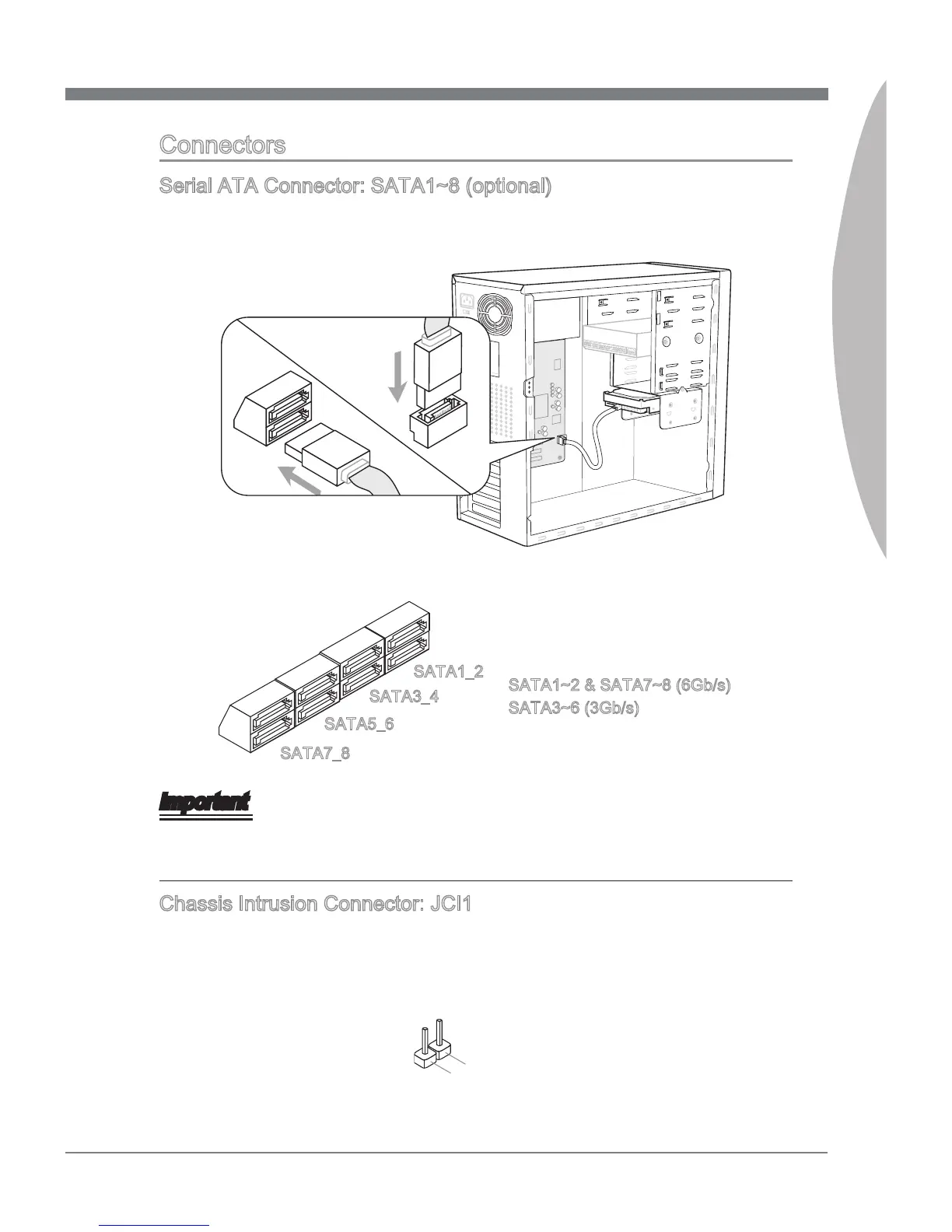

Connectors
Seral ATA Connector: SATA1~8 (optonal)
Ths connector s a hgh-speed Seral ATA nterface port. Each connector can connect
to one Seral ATA devce.
* The MB layout n ths 󰘰gure s for reference only.
SATA1~2 & SATA7~8 (6Gb/s)
SATA3~6 (3Gb/s)
SATA3_4
SATA1_2
SATA5_6
SATA7_8
Important
Please do not fold the Seral ATA cable nto a 90-degree angle. Otherwse, data loss
may occur durng transmsson.
Chasss Intruson Connector: JCI1
Ths connector connects to the chasss ntruson swtch cable. If the chasss s opened,
the chasss ntruson mechansm wll be actvated. The system wll record ths status
and show a warnng message on the screen. To clear the warnng, you must enter the
BIOS utlty and clear the record.
1
.
C
I
N
T
R
U
2
.
G
r
o
u
n
d
