Connectors

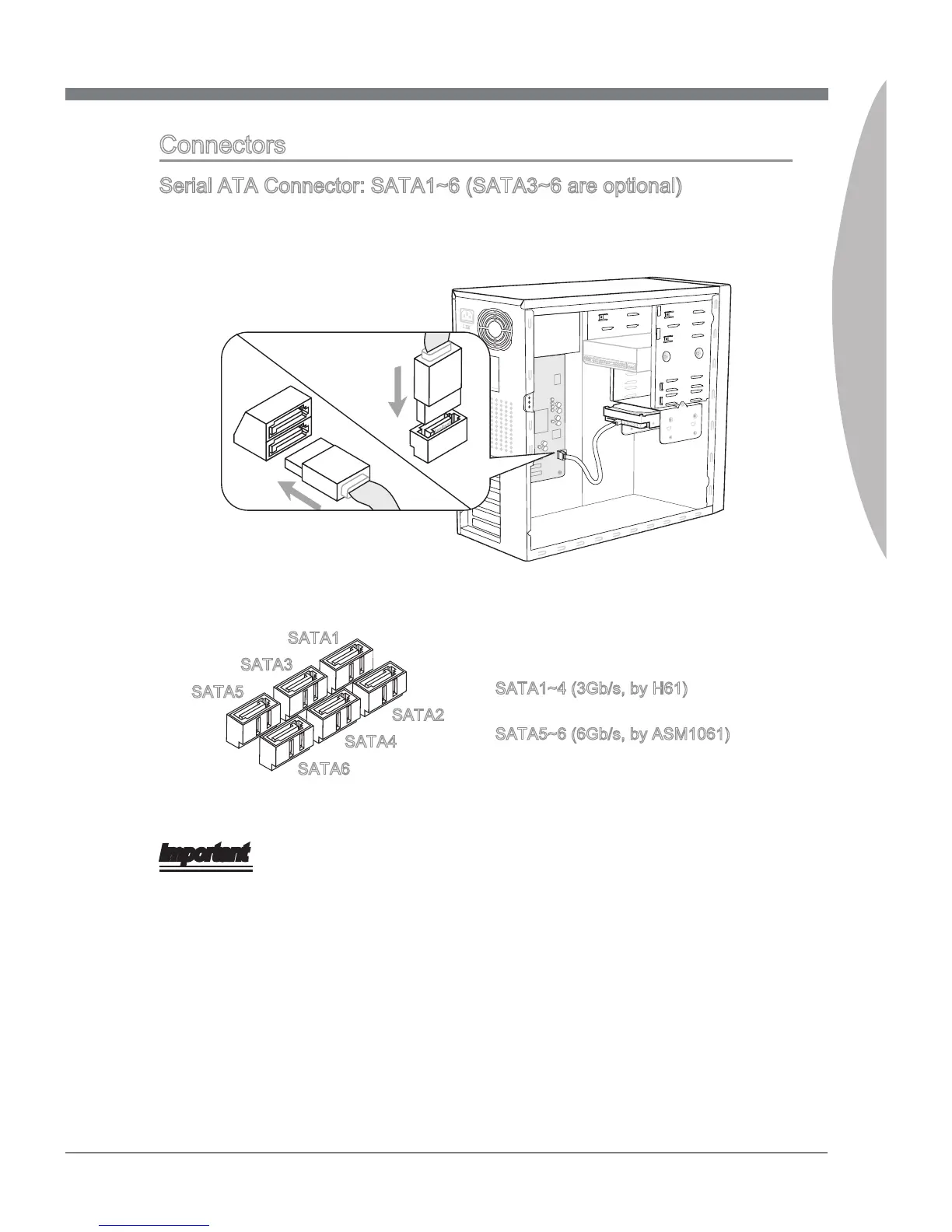

Seral ATA Connector: SATA1~6 (SATA3~6 are optonal)
Ths connector s a hgh-speed Seral ATA nterface port. Each connector can connect
to one Seral ATA devce.
* The MB layout n ths 󰘰gure s for reference only.
SATA1~4 (3Gb/s, by H61)
SATA5~6 (6Gb/s, by ASM1061)
SATA2
SATA1
SATA4
SATA3
SATA6
SATA5
Important
Please do not fold the Seral ATA cable nto a 90-degree angle. Otherwse, data loss
may occur durng transmsson.
