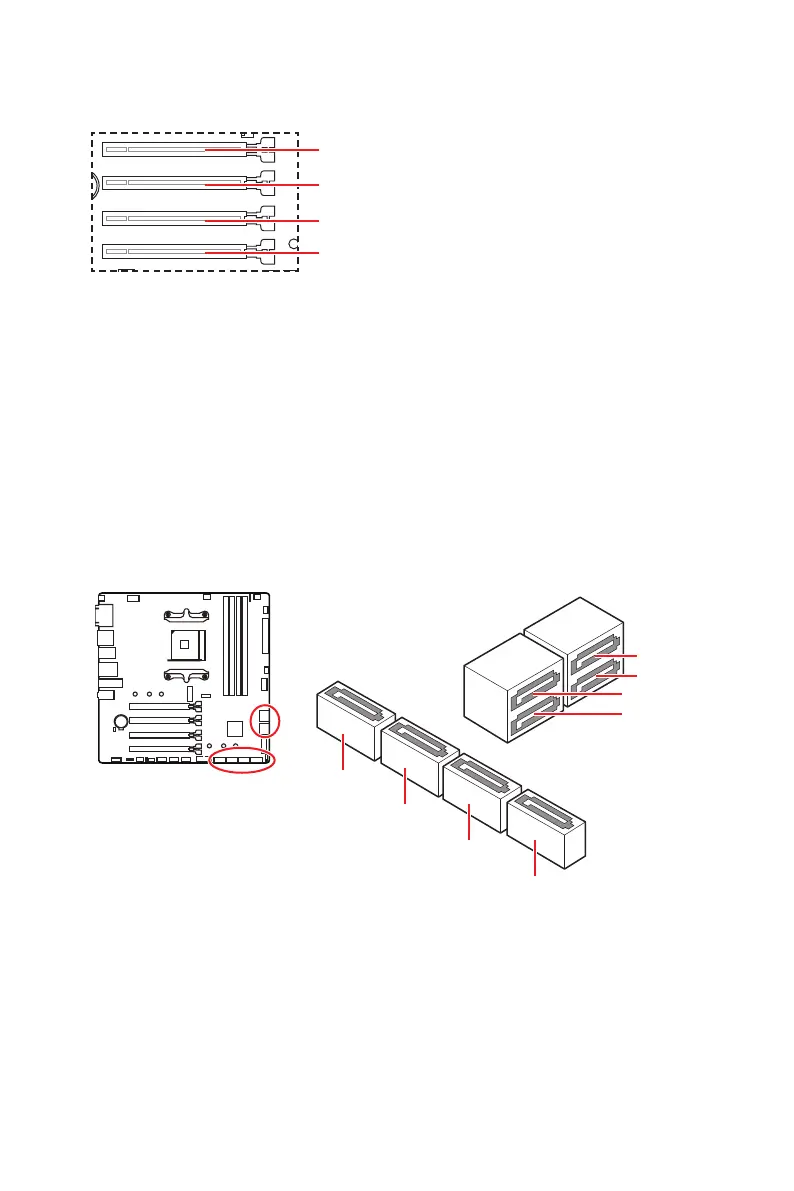

Overview of Components

PCI_E1~4: PCIe Expansion Slots

⚠

Important

∙

If you install a large and heavy graphics card, you need to use a tool such as MSI

Gaming Series Graphics Card Bolster to support its weight to prevent deformation of

the slot.

∙

When adding or removing expansion cards, always turn off the power supply and

unplug the power supply power cable from the power outlet. Read the expansion

card’s documentation to check for any necessary additional hardware or software

changes.

BAT1

PCI_E1 PCIe 3.0/ 4.0 x16 (CPU)

PCI_E3 PCIe 3.0 x1 (PCH)

PCI_E4 PCIe 3.0 x1 (PCH)

PCI_E2 PCIe 3.0 x1 (PCH)

SATA1~8: SATA 6Gb/s Connectors

These connectors are SATA 6Gb/s interface ports. Each connector can connect to one

SATA device.

⚠

Important

∙

Please do not fold the SATA cable at a 90-degree angle. Data loss may result during

transmission otherwise.

∙

SATA cables have identical plugs on either sides of the cable. However, it is

recommended that the flat connector be connected to the motherboard for space

saving purposes.

SATA1

SATA3

SATA5

SATA6

SATA7

SATA8

SATA2

SATA4
