MSI PRO B550M-VC WIFI User Manual

57
UEFI BIOS

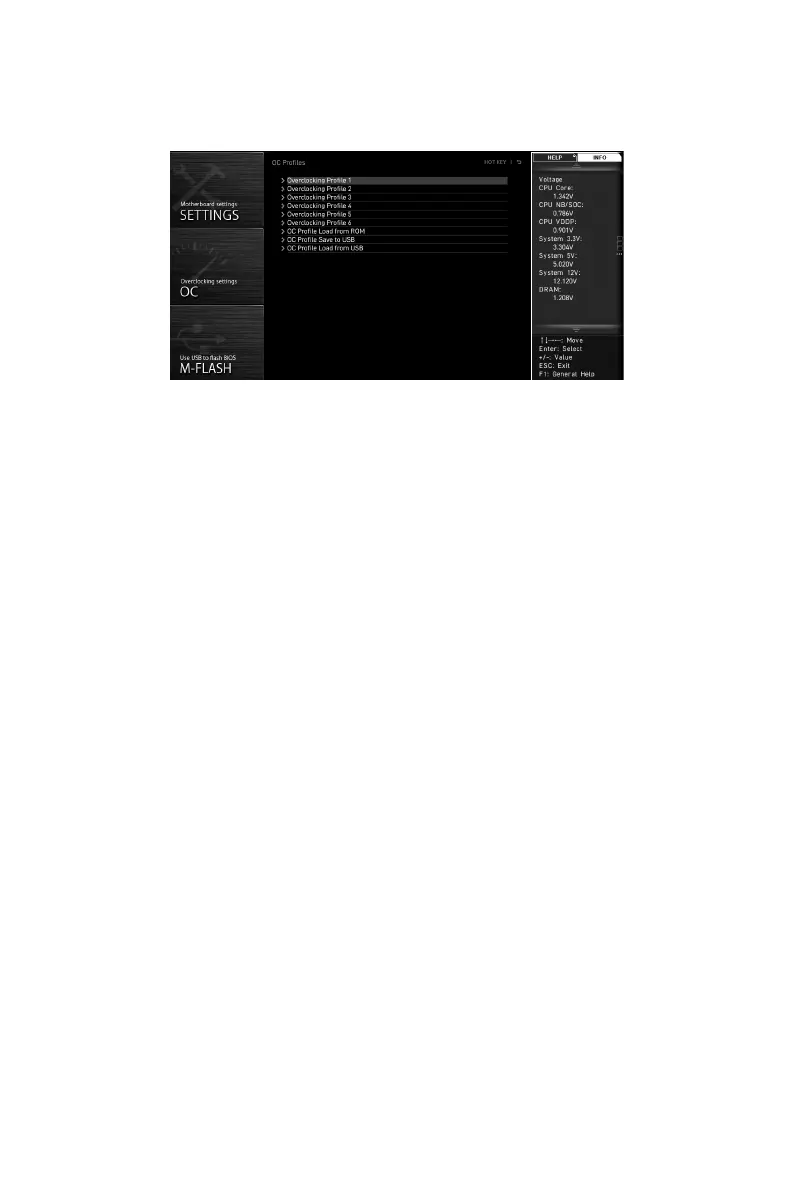

OC PROFILE Menu
▶ Overclocking Prole 1/ 2/ 3/ 4/ 5/ 6
Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6 management. Press Enter to enter the sub-menu.
▶ Set Name for Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6

▶ Save Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6

▶ Load Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6

▶ Clear Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6

▶ OC Prole Load from ROM
Load OC profile from BIOS ROM.
▶ OC Prole Save to USB
Save OC profile to the USB flash drive. The USB flash drive should be FAT/ FAT32
format only.
▶ OC Prole Load from USB
Load OC profile from the USB flash drive. The USB flash drive should be FAT/ FAT32
format only.

MSI PRO B550M-VC WIFI Specifications

General

Chipset	AMD B550
Form Factor	Micro-ATX
Socket	AM4
Memory Slots	4
Maximum Memory	128GB
PCIe Slots	1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16 (x4 mode), 1 x PCIe 3.0 x1
Bluetooth	Bluetooth 5.2
Audio	Realtek ALC897 Codec
PS/2 Ports	1
HDMI Ports	1
DisplayPort Ports	1
Memory Speed	Up to 4400MHz (OC)
Storage Interface	4 x SATA 6Gb/s
LAN	Realtek RTL8125B 2.5Gbps
Wi-Fi	Wi-Fi 6 AX200
Audio Channels	7.1-Channel
RAID Support	RAID 0, RAID 1, RAID 10
BIOS	AMI UEFI
