MSI PRO B550M-VC WIFI User Manual

33

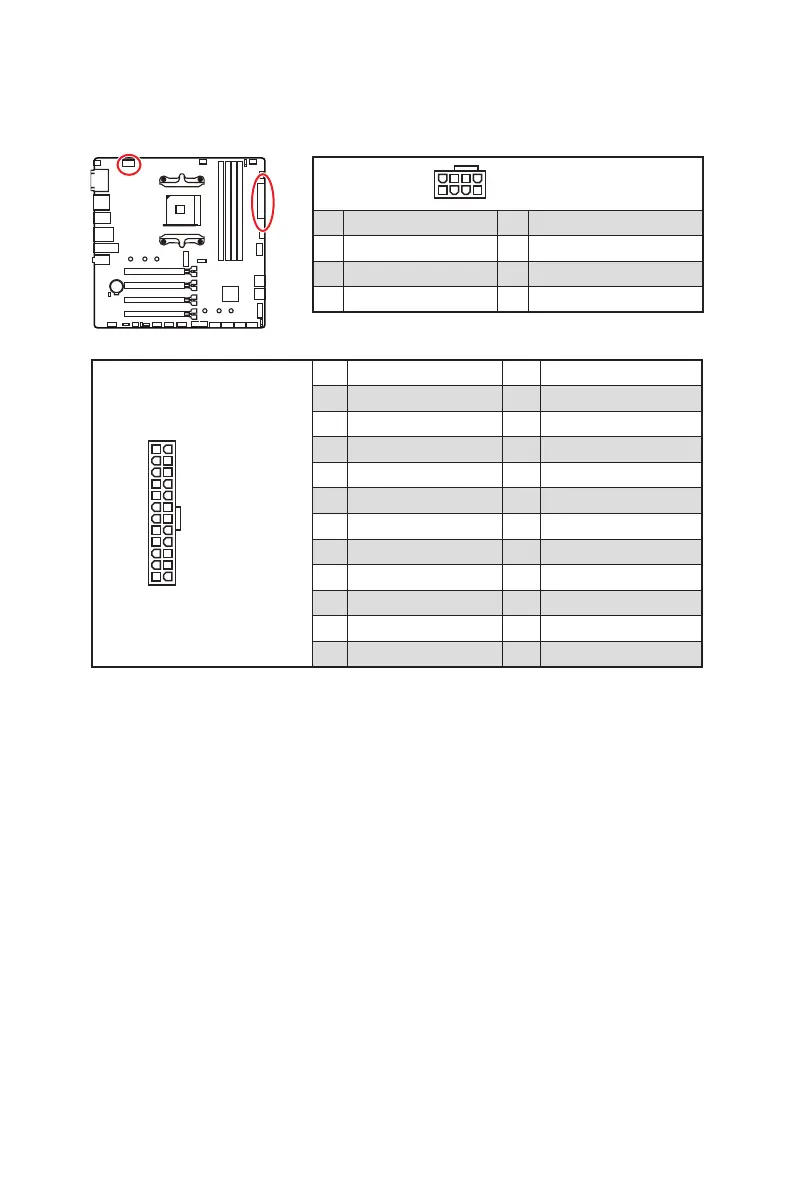

Overview of Components
24
131
12
ATX_PWR1
1 +3.3V 13 +3.3V
2 +3.3V 14 -12V
3 Ground 15 Ground
4 +5V 16 PS-ON#
5 Ground 17 Ground
6 +5V 18 Ground
7 Ground 19 Ground
8 PWR OK 20 Res
9 5VSB 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
12 +3.3V 24 Ground
5
4 1
8
CPU_PWR1
1 Ground 5 +12V
2 Ground 6 +12V
3 Ground 7 +12V
4 Ground 8 +12V
⚠
Important
Make sure that all the power cables are securely connected to a proper ATX power
supply to ensure stable operation of the motherboard.
CPU_PWR1, ATX_PWR1: Power Connectors
These connectors allow you to connect an ATX power supply.

MSI PRO B550M-VC WIFI Specifications

General

Chipset	AMD B550
Form Factor	Micro-ATX
Socket	AM4
Memory Slots	4
Maximum Memory	128GB
PCIe Slots	1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16 (x4 mode), 1 x PCIe 3.0 x1
Bluetooth	Bluetooth 5.2
Audio	Realtek ALC897 Codec
PS/2 Ports	1
HDMI Ports	1
DisplayPort Ports	1
Memory Speed	Up to 4400MHz (OC)
Storage Interface	4 x SATA 6Gb/s
LAN	Realtek RTL8125B 2.5Gbps
Wi-Fi	Wi-Fi 6 AX200
Audio Channels	7.1-Channel
RAID Support	RAID 0, RAID 1, RAID 10
BIOS	AMI UEFI
