Quick Start
HDD LED
RESET SW

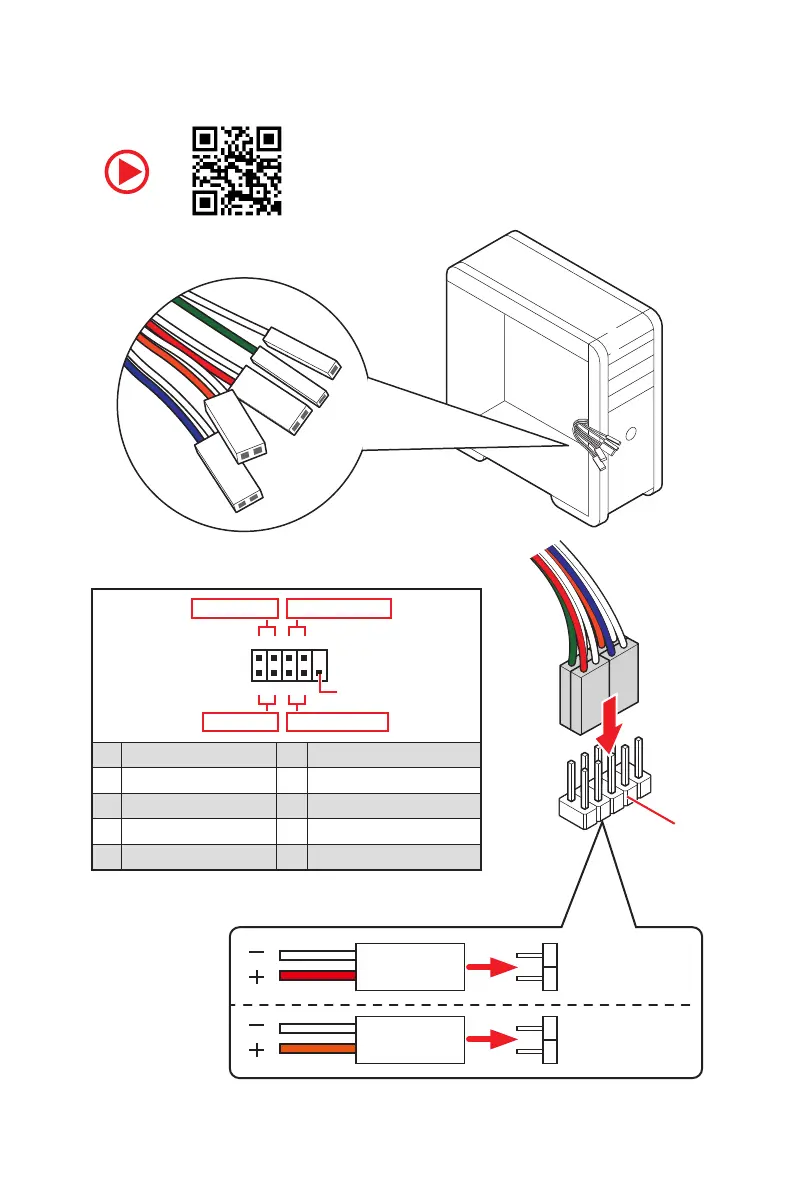

Connecting the Front Panel Header
http://youtu.be/DPELIdVNZUI
JFP1
HDD LED
HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED
1
2 10
9
+
+
+- -- -
+
Power LED
HDD LED Reset Switch
Reserved
Power Switch
JFP1
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
RESET SW
POWER SW
POWER LED+
POWER LED-
HDD LED

MSI PRO B550M-VC WIFI Specifications

General

Chipset	AMD B550
Form Factor	Micro-ATX
Socket	AM4
Memory Slots	4
Maximum Memory	128GB
PCIe Slots	1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16 (x4 mode), 1 x PCIe 3.0 x1
Bluetooth	Bluetooth 5.2
Audio	Realtek ALC897 Codec
PS/2 Ports	1
HDMI Ports	1
DisplayPort Ports	1
Memory Speed	Up to 4400MHz (OC)
Storage Interface	4 x SATA 6Gb/s
LAN	Realtek RTL8125B 2.5Gbps
Wi-Fi	Wi-Fi 6 AX200
Audio Channels	7.1-Channel
RAID Support	RAID 0, RAID 1, RAID 10
BIOS	AMI UEFI
