Overview of Components
⚠
Important
∙ The JRGB connector supports up to 2 meters continuous 5050 RGB LED strips
(12V/G/R/B) with the maximum power rating of 3A (12V).
∙ Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing the RGB LED strip.
∙ Please use MSI’s software to control the extended LED strip.
JRGB1: RGB LED connector
The JRGB connector allows you to connect the 5050 RGB LED strips 12V.
1
G
R
B
JRGB
connector
RGB extension
cable
5050 RGB LED strips 12V
1
1 +12V 2 G
3 R 4 B

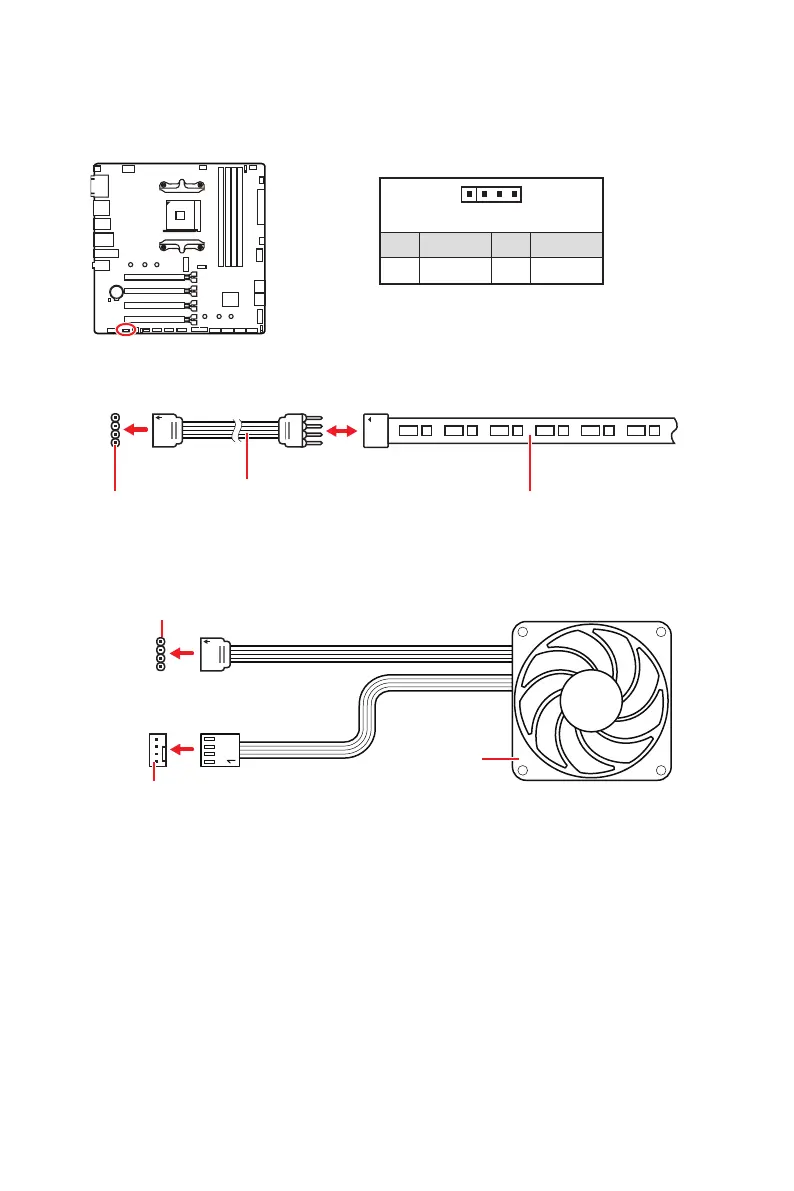

RGB LED Strip Connection
1
1
G
R
B
JRGB connector
System Fan connector
RGB LED Fan Connection
RGB LED Fan

MSI PRO B550M-VC WIFI Specifications

General

Chipset	AMD B550
Form Factor	Micro-ATX
Socket	AM4
Memory Slots	4
Maximum Memory	128GB
PCIe Slots	1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16 (x4 mode), 1 x PCIe 3.0 x1
Bluetooth	Bluetooth 5.2
Audio	Realtek ALC897 Codec
PS/2 Ports	1
HDMI Ports	1
DisplayPort Ports	1
Memory Speed	Up to 4400MHz (OC)
Storage Interface	4 x SATA 6Gb/s
LAN	Realtek RTL8125B 2.5Gbps
Wi-Fi	Wi-Fi 6 AX200
Audio Channels	7.1-Channel
RAID Support	RAID 0, RAID 1, RAID 10
BIOS	AMI UEFI
