D-2
MS-7191 M-ATX Mainboard

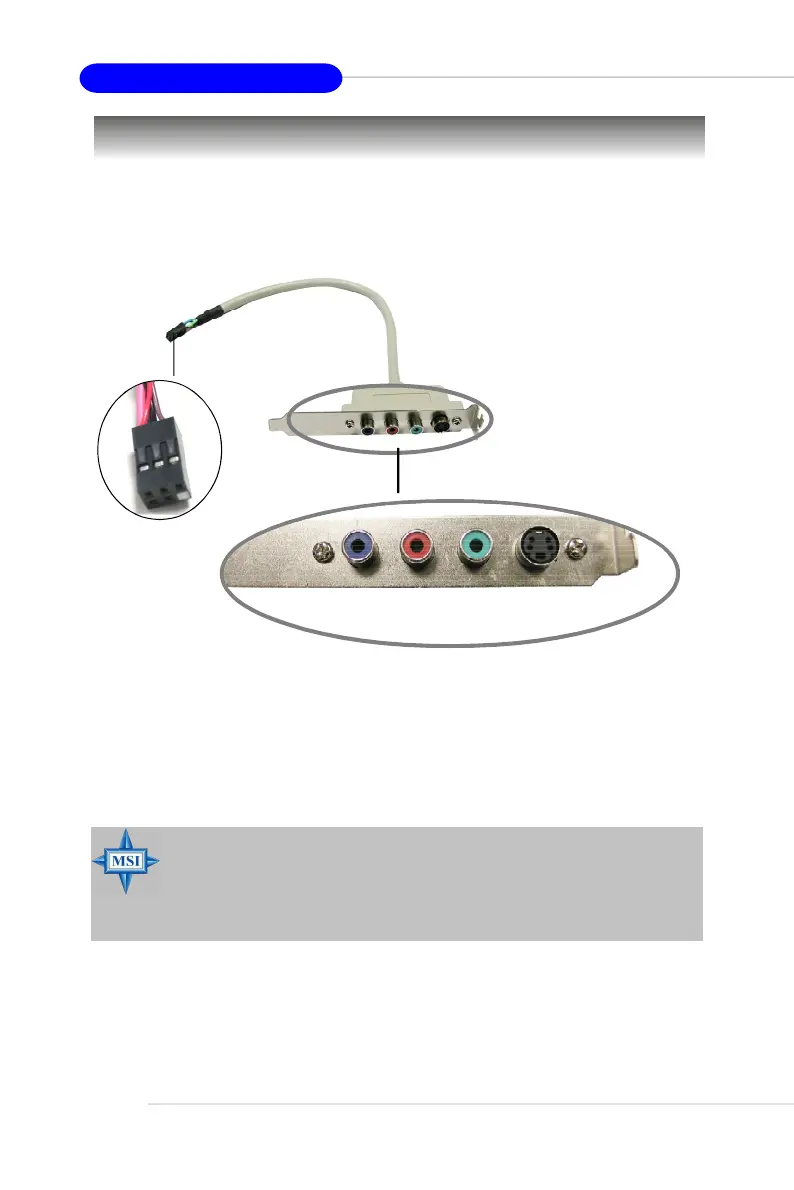

Installing the TV-Out Bracket
1. Take out the TV-Out bracket.
2. Locate the TV-out connector (JTV1) on the mainboard.
3. Connect the TV-Out bracket to the connector. Align the foolproof design with the
pin layout of the connector to avoid mis-inserting.
4. Place the TV-Out bracket into the first slot of your system case.
TV-Out Bracket
TV-Out Connector
(S-Video)
TV-Out Connector
(RCA Composite)
Foolproof
design
MSI Reminds You...
If you intend to use the TV-out function, please note that the TV-Out
bracket supports to connect one TV only. Meanwhile you can not con-
nect two TVs to this bracket. Select one type of the TV-out connectors to
connect to appropriate TV.
